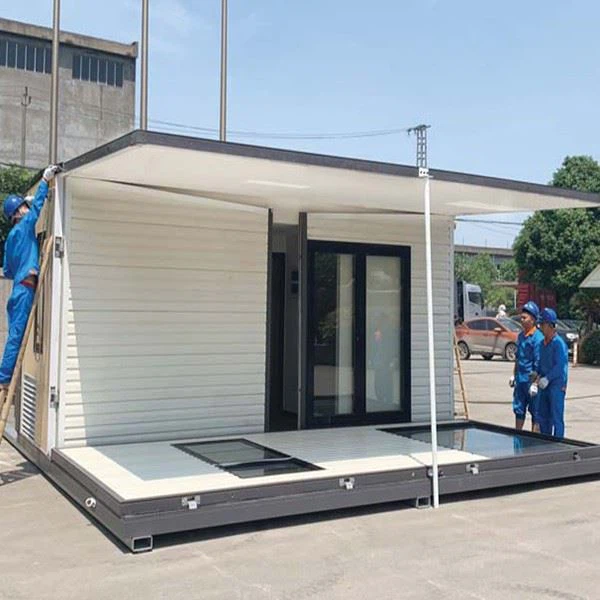

3 Bedroom Expandable Thawv Tsev
20ft lub tsev loj: Expanded Loj: 6360mm * 5850mm * 2530mm (L * W * H)
40ft lub tsev loj: Expanded Loj: 11800mm * 6245mm * 2530mm (L * W * H)
Hlau Ncej: Painted steel kab thiab T{{0}}.5 ~ 3.0 hli ru tsev / pem teb ncej kab teeb
Xim xaiv: Dawb, Liab, Dub, Grey lossis lwm yam xim RAL
Khoom Taw qhia
Lub npe | 3 Bedroom Expandable Container Homes ua nyob rau hauv Suav teb |
20ft lub tsev loj | 6360mm * 5850mm * 2530mm (L * W * H) |
40ft lub tsev loj | 11800mm * 6245mm * 2530mm (L * W * H) |
Hlau Ncej | Painted steel kab thiab T{{0}}.5 ~ 3.0 hli ru tsev / pem teb ncej kab teeb |
Xim xaiv | Dawb, Liab, Dub, Grey lossis lwm yam xim RAL |
Phab ntsa | 50/75 hli EPS / PU sandwich vaj huam sib luag |
2) Sab nrauv steel ntawv (tus qauv teeb tsa): Corrugated 0.42mm Aluminium-zinc xim steel ntawv, PE txheej txheej, Xim: dawb, Aluminium-zinc thickness Ntau dua lossis sib npaug li 40g / m2 | |
3) Rwb thaiv tsev txheej (tus qauv teeb tsa): 75mm EPS, qhov ntom ntom ntau dua lossis sib npaug li 12kg / m3 | |
4) Sab hauv steel ntawv (tus qauv configuration): Pav ca 0.4mm Aluminium-zinc xim steel ntawv, PE txheej txheej, Xim: dawb, Aluminium-Zinc thickness Ntau dua los yog sib npaug li 40g / m2 | |
Lub vaj huam sib luag | 1) Steel ncej & accessories: Main ru tsev ncej: txias tsim steel, thickness =2.5 ~ 3mm, galvanized. nrog 4pcs galvanized nqa cov ces kaum. Ru tsev purlin: C80*40*15*2.0, galvanized. Q235B steel hlau |
2) ru tsev vaj huam sib luag: 0.4 los yog 0.5mm thickness Aluminium-zinc xim steel ntawv, PE xov txheej. Xim: dawb, Aluminium thickness Ntau dua los yog sib npaug rau 70g / m2, 360 degree tag nrho kev sib txuas | |
3) Rwb thaiv tsev: 100mm thickness Fiber iav nrog aluminium ntawv ci, ntom =14kg / m3, Qib A hluav taws-pov thawj, nonflammable. | |
4) Ceiling board: V-170 hom, 0.5mm Aluminium-zinc xim steel ntawv, PE xov txheej. Xim: dawb, Aluminium-zinc thickness Ntau dua lossis sib npaug li 40g / m2. | |
Pem teb | Ncej qauv ntxiv rau MGO board ntxiv rau PVC pem teb |
Qhov rai | Ob chav glazed PVC qhov rais / aluminium alloy qhov rais Qhov rai screen yog xaiv tau |
Qhov rooj | Aluminium alloy iav qhov rooj / ntoo qhov rooj / PVC zawv zawg qhov rooj thiab steel qhov rooj thiab lwm yam. |
Chav dej | Da dej, chav dej, ntxhua khaub ncaws, phuam da dej, daim iav, ntawv thawv |
Chav ua noj | Lub khob "Kuv" lossis "L" zoo nrog lub tais ntxhua khaub ncaws, nrog dawb Quartz pob zeb countertop |
Hluav taws xob qhov system | Hloov, qhov (socket), teeb, lub teeb, tsis muaj dej socked, tis lub thawv thiab lwm yam. (Australia standard, American standard, Fabkis standard, Suav standard, European standard thiab lwm yam.) |
Max. Cua load | 110 km / h |
Av qeeg | 8 qib |
Qhov zoo
a. Lub zog thiab durability
3 Bedroom Expandable Container Homes yog tsim los nqa hnyav cua thiab daus. Lawv kuj tau tsim los tiv thaiv ib puag ncig hnyav, xws li ntsev, nag hnyav, huab cua kub ... muaj zog txias dov Q345 steel tom qab galvanization thiab pleev xim yog tiv thaiv xeb thiab tuaj yeem nyob ntev hauv cov xwm txheej no; insulated ru tsev thiab phab ntsa panels yuav tiv thaiv los ntawm tshav kub los yog txias.
b. Modular
Txhua Lub Tsev Thawv Lub Tsev yog qhov dav tib yam thiab feem ntau muaj ob qhov kev ntsuas qhov ntev uas yog 20ft thiab 40ft. Qhov no yooj yim tsim, npaj thiab thauj. Raws li lawv twb tau tsim los cuam tshuam rau kev yooj yim ntawm kev txav mus los, kuj tau kos tag nrho cov kav dej thiab hluav taws xob hauv lub hoobkas, kev tsim kho vaj tse yog ua tiav los ntawm kev tso lawv yooj yim.
c. Tus nqi qis ntawm qhov chaw
Raws li feem ntau cov khoom tiav lawm thiab nruab twb muaj nyob rau hauv lub Hoobkas xws li: thav duab txuas, phab ntsa thiab ru tsev rwb thaiv tsev, qhov rooj, kav dej, hluav taws xob system ... nws minimized lub installation yuav tsum tau thiab lub sij hawm installation yog li ntawd lub installation nqi qis dua.
d. Kev thauj mus los
Prefabricated modules kuj tseem tuaj yeem thauj tau yooj yim los ntawm nkoj, tsheb lossis tsheb ciav hlau, vim tias lawv ntim tau zoo.
e. Muaj
Hlau thiab Sandwich vaj huam sib luag yog cov khoom siv nrov tshaj plaws hauv ntiaj teb, kuj tuaj yeem hloov tau yooj yim thaum lub sij hawm tom qab muag muag.
f. Kev siv nyiaj
Cov ntaub ntawv tseem ceeb ntawm Expandable Container House yog steel thiab sandwich vaj huam sib luag. Ob leeg yog cov khoom siv hauv tsev tsis tu ncua thiab yooj yim kom tau txais. Tus nqi pheej yig ntawm Suav steel ua rau cov nqi tsev yog kev sib tw kuj ua rau kev saib xyuas yooj yim thiab txuag nqi.
g. Lub hauv paus
Container House yog tsim los txhawb nqa los ntawm lawv plaub lub ces kaum ua lub hauv paus yooj yim heev.
h. Eco-Friendly
Steel qauv system yog recyclable, yog li peb txuag ntau txhiab kilograms ntawm steel thaum peb tsim nyob rau hauv lub thawv tsev system. Tsis tas li ntawd, thaum tsim cov thawv, peb kuj tseem txo cov khoom siv hauv tsev ib txwm xav tau (piv txwv li, cib thiab cement).
Daim ntawv thov
Rau kev ua haujlwm hauv tsev;
Rau lub tsev me me tom qab;
Rau qhov chaw mining lossis chaw tsim kho chav tsev;
Rau cov tsev nyob qis qis;
Rau tsev ib ntus lossis chaw ua haujlwm ib ntus;
Rau chav cais;
Rau chav kawm;
Rau tsev neeg tawg rog;
Kev teeb tsa
Yooj yim thiab yooj yim sib sau ua ke ntawm 3 Bedroom Expandable Container Homes.
Feem ntau, nws yuav siv sijhawm 7-10 hnub los ua kom tiav kev sib sau los ntawm 3-5 cov neeg ua haujlwm.
Thiab peb yuav muab cov duab kos duab los qhia kev teeb tsa, tseem yuav txhawb nqa online. Nws yog ib qho yooj yim thiab ceev heev.
Foundation
Tso lub chassis;
Txhim kho cov phab ntsa panels;
Txuas hluav taws xob thiab kav dej;
Nruab lub qhov rooj thiab qhov rais;
Nruab qhov flashing, skirting;
Tiav lawm
Yuav Ua Li Cas Ua Koj Qhov Project
Peb tab tom muab kev pabcuam daws teeb meem ib-nres rau txhua qhov haujlwm:
Sau cov ntaub ntawv qhov project xws li qhov project qhov chaw, qhov ntev, qhov yuav tsum tau thauj khoom; cov cai… pab peb cov neeg siv khoom kom paub meej txhua yam kev xav tau;
Dawb customized architectural tsim raws li saum toj no qhov project yuav tsum tau;
Cov nyiaj txiag nrog cov ntaub ntawv nthuav dav tom qab tsim kev pom zoo, ua kom pom tseeb ntawm peb txoj haujlwm;
Ua cov duab kos duab tom qab qhov kev pom zoo, qhia rau peb cov neeg siv khoom paub tias peb yuav ua tiav lawv li cas;
20-30 hnub ntau lawm lub sij hawm nyob ntawm qhov project loj. Yuav muab cov duab thiab yeeb yaj duab los hloov kho qhov kev vam meej.
Kev ntim khoom zoo: SOC packing rau flatpack thawv tsev, steel pallet rau lub teeb ntsuas steel thiab qauv. Xyuas kom tag nrho cov ntaub ntawv raug teeb tsa zoo thiab yooj yim rau kev txheeb xyuas thaum tuaj txog hauv qhov project site;
Pab npaj kev thauj mus los rau qhov project site. Peb muaj tus neeg sawv cev zoo heev uas paub zoo txog peb cov khoom siv thiab peb cov txheej txheem ntim khoom thiab lawv tuaj yeem koom tes nrog peb los pab tswj peb cov khoom thauj zoo heev;
Muab cov lus qhia ntxaws ntxaws, xyuas kom txhua tus neeg ua haujlwm txawm tias tsis muaj kev tsim kho tuaj yeem nkag siab thiab ua raws li peb cov lus qhia kom tiav lub installation;
Tseem tuaj yeem xa cov engineers los coj kev teeb tsa rau qee qhov haujlwm tshwj xeeb;
Kev them nyiaj yug tu: ua tsaug rau BIM system yog li peb tuaj yeem muaj kev pabcuam tas mus li rau txhua lub tsev thiab cov haujlwm;
Tej yaam num
Indonesia:
PT Merdeka chaw pw hav zoov-288 chav nrog ensuite;
AMMAN chaw pw hav zoov -480 chav nrog ensuite;
Chile:
FRIOSAN txias cia-1600sqm warehouse nrog ob pem teb chaw ua hauj lwm cheeb tsam, nyob rau hauv-depended noj mov thiab nkag chav
Reduccion cas
Casa Laguna Verde-156sqm ob lub tsev
Austrian:
Polyfit Rhiav thiab chaw ua hauj lwm lub tsev - nyob rau hauv tag nrho ib ncig ntawm 2000sqm, muab steel qauv, lub teeb gauge steel ncej thiab ob txhais tes shipping thawv;
Philippines:
SCPA Rhiav-3200sqm nrog flatpack thawv chaw ua haujlwm sab hauv
SG Eco Rhiav-3600sqm warehouse nrog ob chav ua haujlwm hauv 250sqm,
Iriga Hoobkas,
BBL Camp - 24 chav pw pw hav zoov nrog cov kev pabcuam pej xeem xws li chav noj mov, chav gym;
Maria De Sio Resort -320sqm
SMMCI Camp—1300sqm chaw ua haujlwm lub tsev tsim los ntawm lub tsev ntim khoom thiab 2600sqm warehouse
FAQ
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Hangzhou Xixi Building Co., LTD. yog lub Hoobkas nyob hauv Xiaoshan District, Hangzhou, Suav.
Q: Koj lub peev xwm muab khoom yog dab tsi?
A: Cov ntaub ntawv muaj peev xwm txhua xyoo yog raws li hauv qab no:
Thawv tsev: 7200sets
Prefab tsev; 564 000 m² os
Steel qauv: 360000 square meters.
Q: Yuav ua li cas rau nruab ib lub 4 Bedroom Expandable Container Homes?
A: Peb yuav muab cov lus qhia ntxaws nrog rau kev teeb tsa cov yeeb yaj kiab. Cov kws tshaj lij kev teeb tsa engineers pab pawg kuj tseem muaj rau qee qhov haujlwm tshwj xeeb txawv teb chaws ntawm tus neeg siv khoom yog tias tsim nyog.
Q: Koj lub sijhawm xa khoom ntev npaum li cas rau3 Bedroom Expandable Thawv Tsev?
A: Feem ntau yuav yog 30 hnub raws li kev txiav txim sib txawv Qty thiab thov. Qhov no tau suav nrog dawb architectural drawings, khw kos duab, installation cov lus qhia.
Q: Koj tuaj yeem lav qhov zoo ntawm cov khoom li cas?
A: Kev ua tau zoo yog yav tom ntej. Kev ua tau zoo yog qhov tseem ceeb tshaj plaws.
Peb muaj tsib tus neeg QC pab pawg tshuaj xyuas kev tsim khoom txhua hnub, lawv yuav ua raws li lub khw kos duab nruj me ntsis thiab tshawb xyuas txhua feem / project thaum pib, nruab nrab thiab rau cov khoom tiav.
Peb tuaj yeem sib sau ua ke qee chav nyob hauv peb lub Hoobkas rau qee qhov tshwj xeeb customized ua haujlwm kom paub tseeb tias txhua yam zoo txaus.
Q: Kuv tuaj yeem tau txais cov lus hais rau kuv qhov project li cas?
A: Peb tuaj yeem muab cov ncauj lus kom ntxaws raws li koj daim duab kos. Yog tias koj tsis muaj duab kos, peb tus kws tsim qauv tuaj yeem muab qee qhov qauv rau koj raws li koj cov lus qhia ntxaws. Quotations yuav muab tom qab kev pom zoo ntawm cov qauv tsim.
