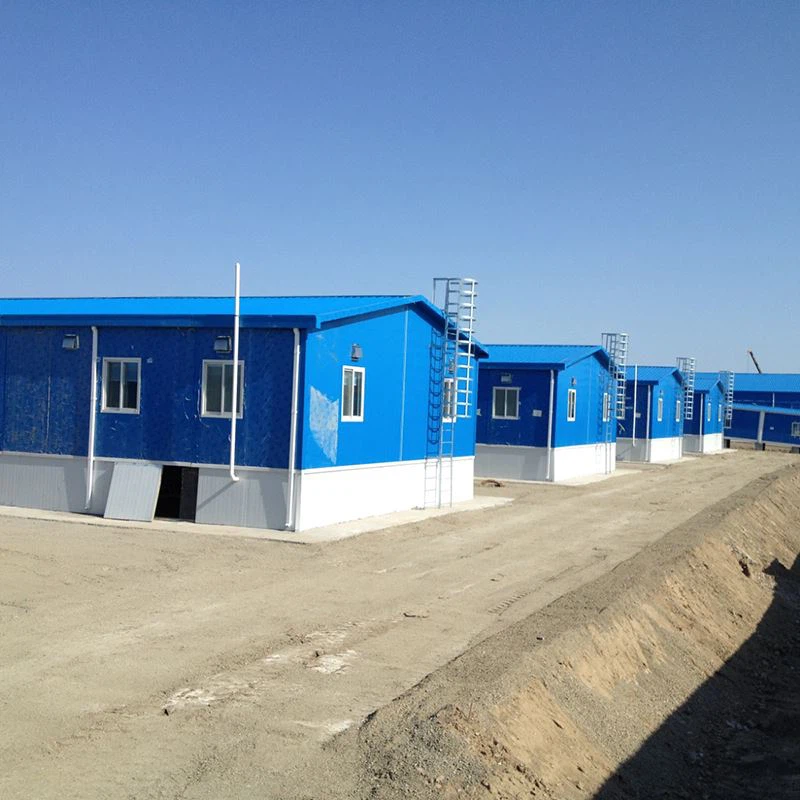

Modular Container Camp Housing Design Rau Mining Site haum rau ntau tshaj 600 tus neeg ua haujlwm

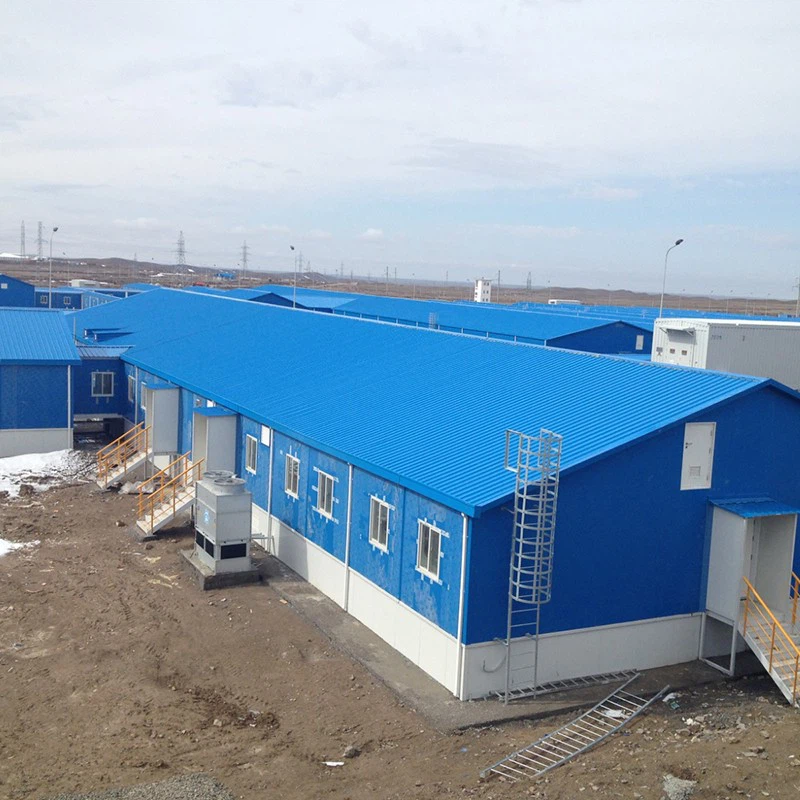

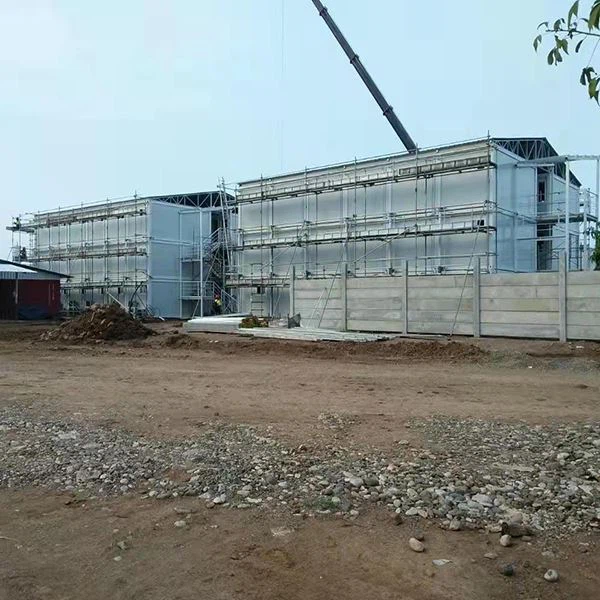

Modular Container Camp Housing Design for Mining Site



Qhov no qhia txog cov ncauj lus kom ntxaws (tsim los ntawm CBC) cov lus pom zoo rau lub thawv ntim khoom siv hauv tsev nyob ntawm qhov chaw mining. Lub hom phiaj tsim kom haum rau 50 ib chav rau cov neeg ua haujlwm tswj hwm thiab 600 tus neeg ua haujlwm (300 ob chav-chaw nyob) nyob rau hauv peb- zaj dab neeg cov qauv uas muaj qhov ntev- sab txuas modules nrog lub qhov rooj ntawm luv luv, tig mus rau ib leeg hla ib txoj hauv kev hauv nruab nrab. Cov qauv tsim suav nrog lub teeb steel vov tsev thiab ua haujlwm zoo.



Kev tswj vaj tsev: 50 ib leeg - chav nyob

Cov neeg ua haujlwm vaj tse: 600 tus neeg ua haujlwm → 300 ob - chav nyob

Tag nrho cov xav tau modules: 50 (ib zaug) + 300 (ob npaug)=350 modules

Lub tsev siab tshaj plaws: 3-storey tsev

Module qhov ntev:

Qhov siab: 2.438m

Ntev: 6,000 m

Qhov siab: 2.700 m

Txhua module muaj xws li:

Integrated ru tsev thiab prefabricated pem teb

4 qab posts

Phab ntsa panels:

Ntev sab (2 sab): 5 panels txhua → 10 panels

Cov sab luv (2 sab): 2 panels txhua → 4 panels

Tag nrho cov phab ntsa panels ib module: 14 panels (75 mm tuab sandwich panels)

Qhov rai thiab qhov rooj ua ntej- tau nruab rau hauv phab ntsa panels

Integrated chav dej haum rau 1-2 tus neeg nyob





Cov qauv tsim tshwj xeeb tsom rau kev ua kom zoo tshaj qhov chaw ua haujlwm, ua kom muaj kev nyab xeeb thiab kev nplij siab, thiab ua kom yooj yim rau kev xa tawm sai thiab scalability. Los ntawm kev sib koom ua ke ntawm lawv cov sab ntev (6 m), qhov kev teeb tsa ua tiav cov hneev taw ntau dua, txoj hauv kev luv luv kom zoo dua egress, thiab kev sib koom ua ke nrog lub teeb steel ru tsev npog.

Tsim Qhov Zoo

Siv tau qhov chaw zoo: Txoj kev luv luv txo kev taug kev deb thiab txhim kho kev nkag mus.

Kev nyab xeeb thiab kev saib xyuas: Central txoj kev hauv tsev ua kom pom kev ncaj qha thiab tswj tau.

Kev xa tawm sai: Prefabricated modules thiab cov qauv tsim qauv tso cai rau kev sib dhos ceev.

Scalability: Tsim tau yooj yim replicated kom nthuav dav raws li xav tau.





Txhua qhov thaiv muaj ob kab sib txuas ntawm cov thawv, nrog lub qhov rooj sib tham nyob rau hauv nruab nrab txoj kev hauv tsev. Qhov loj me muaj xws li:

Ntev: 48.76 m

Qhov tob: 13.8 m

Qhov siab: ~8.7 m

Tag nrho hauv pem teb cheeb tsam yog kwv yees li 2,019 m², nrog peb blocks tag nrho txog 6,057 m².







Txhua module tsis hloov:

1 prefabricated pem teb

1 integrated ru tsev (module saum)

4 qab posts

14 phab ntsa panels (75 mm sandwich):

Sab ntev (6 m): 5 panels txhua → 10

Cov sab luv (2.438 m): 2 panels txhua → 4

Qhov rooj/qhov rais ua ntej- nruab rau hauv luv - sab vaj huam sib luag



Cheebtsam	Qty rau Module	Tag nrho (360)
Prefabricated pem teb	1	360
Module-tej vaj huam sib luag	1	360
Cov ncej ncej	4	1,440
75-mm sandwich phab ntsa panels	14	5,040





Ib pem teb ib block:

Ntev=48.76 m

Dav=1.8 m

Luas=48.76 × 1.8=87.77 m²

Tag nrho txoj hauv kev: 3 blocks × 3 pem teb=9 txoj kev

Luas=87.77 ≈ 790 m²

→ Tsim nrog lub teeb steel joists thiab hlau decking los yog fiber ntau cement board topping.





Yam tsawg kawg nkaus 3 stair towers ib block (rau hluav taws egress ntawm ob qho kawg thiab hauv nruab nrab)

Tag nrho: 3 blocks × 3=9 stair towers

Txhua tus pej thuam: 3 zaj dab neeg, lub teeb steel ncej, grating treads

Kwv yees steel ib lub pej thuam: -2.5 metric tons
→ Tag nrho cov ntaiv steel: 22.5 metric tons





Luas : 48.76 m × 13.8 m=672.9 m²

Xav tias gable los yog mono-pitch ru tsev nrog 5℃txoj kab nqes → thaj tsam zoo ≈ 675 m²/block

Roofing system:

Main rafters / trusses @ 6.0 m qhov sib nrug (nruab nrab ntawm qhov sib txuas ntawm qhov sib txuas) → 3 bays (0m, 6m, 12m)

Purlins @ 1.5 m oc

0.5 hli PPGI ru tsev cladding

Cov qauv steel hnyavQhov hnyav: -12 kg / m²
→ Ib pob: 675 × 12 =8,100 kg=8.1 tons
→ Rau 3 blocks:24.3 t. : kuv

Ru tsev cladding (PPGI, 0.5 hli):

Tag nrho cheeb tsam=3 × 675=2,025 m²





Yam khoom	Ntau
Thawv modules	360
- Prefab pem teb	360
- Module ru tsev	360
- Cov ncej ncej	1,440
- 75-mm sandwich phab ntsa panels	5,040
Central corridor lawj cheeb tsam	790 m²
Stair towers	6
- Cov qauv hlau rau cov ntaiv	22,5t ua
Lub teeb steel ru tsev framing	24,3t ua
Ru tsev cladding (0.5 hli PPGI)	2,025 m²





Lub tswv yim tsim kho los ntawm CBC, rau mining camp vaj tsev muaj cov kev daws teeb meem zoo uas sib npaug kev ua haujlwm, kev nyab xeeb, thiab kev zoo nkauj. Nrog rau nws qhov scalable thiab modular xwm, qhov kev tsim no muab kev yooj yim rau yav tom ntej nthuav dav thaum tswj hwm cov txheej txheem siab ntawm kev ua neej nyob rau kev tswj hwm thiab cov neeg ua haujlwm.







Txhawm rau kom ua tiav qhov kev ua tiav, kev nyab xeeb, kav ntev, thiab kev ua haujlwm ntawm kev tsim vaj tsev mining camp, cov kev xav hauv qab no yuav tsum tau hais ntxiv:



Stacking Integrity: Modules yuav tsum muaj kev ruaj ntseg interlocked siv ISO kaum castings los yog siab stacking connectors los tiv thaiv cua uplift thiab seismic rog. CBC's flatpack thawv tsev system yog ib qho zoo tshaj plaws hauv Suav teb nrog ntau tshaj 10 xyoo kev paub hauv kev lag luam txawv teb chaws, tau muab rau cov tuam txhab loj mining xws li AMMAN, MTI hauv Indonesia.

Foundation System: Siv cov pob zeb pob zeb, cov ntsia hlau hauv av, lossis cov hauv paus hauv paus nyob ntawm cov av. Lub hauv paus yuav tsum ua kom meej meej nrog lub kaum sab xis ntawm cov ncej. CBC tuaj yeem muab kev teeb tsa thiab cov lus qhia rau lub hauv paus.

Lateral Bracing: Muab tus ntoo khaub lig- bracing lossis shear phab ntsa ntawm cov modules (tshwj xeeb tshaj yog ntawm cov ntaiv yees thiab txoj hauv kev junctions) txhawm rau txhim kho kev ruaj ntseg nyob rau hauv 3-zaj dab neeg configurations. CBC's flatpack thawv tsev muab X braces rau txhua lub tsev prefab lub tsev nyob rau ob sab ntev.





Hluav taws kub-Rated Panels: Phab ntsa thiab ru tsev sandwich panels yuav tsum siv cov uas tsis yog -combustible cores (xws li, pob zeb wool) nrog rau qhov tsawg kawg nkaus qhov hluav taws kub ntsuas ntawmIB 30(30-feeb kev ncaj ncees thiab rwb thaiv tsev). CBC muaj kev xaiv rau cov neeg siv khoom sib txawv / cov phiaj xwm xws li EPS sandwich rau cov haujlwm qis, rockwool sandwich rau fireproof, PU sandwich rau rwb thaiv tsev zoo dua.

Kev sib cais hluav taws: Nruab qhov hluav taws kub- tiv thaiv cov partitions ntawm cov modules yog tias cov lej hauv zos xav tau kev sib cais.

Egress Ua Raws Cai: Txoj hauv kev hauv nruab nrab yuav tsum ua kom tau raws li qhov xav tau dav dav (Ntau dua lossis sib npaug li 1.8 m), thiab cov ntaiv ntaiv yuav tsum muaj ob txoj kev khiav tawm ywj pheej hauv pem teb raws li NFPA lossis cov cai tswj kev nyab xeeb hauv zos.

Cov pa taws tswb & Hluav taws tua hluav taws: Nruab nyob rau hauv txhua qhov module thiab ntau qhov chaw.

CBC tuaj yeem muab kev txiav txim siab rau cov haujlwm sib txawv raws li qhov xav tau sib txawv.





Rwb thaiv tsev: 75 mm pob zeb wool lossis PIR core panels feem ntau ua tiav U-tus nqi ntawm ~ 0.35–0.45 W/m²K- txheeb xyuas qhov tsim nyog rau kev nyab xeeb hauv zos (kub kub lossis txias).

Condensation Control: suav nrog vapor barriers thiab txaus qhov cua kom tiv thaiv interstitial condensation nyob rau hauv ib puag ncig ntub.

Suab rwb thaiv tsev: Xyuas kom cov phab ntsa / pem teb cov rooj sib txoos muab ntau dua los yog sib npaug rau 40 dB cua tshuab suab rwb thaiv tsev ntawm cov chav, tshwj xeeb tshaj yog rau cov chaw tswj xyuas.





MEP Riser Zones: Tsim cov ncej ntsug (ua ke rau hauv cov ntaiv yees lossis cov phab ntsa hauv tsev) rau hluav taws xob, dej, dej phwj tuaj, thiab xov tooj.

Prefabricated Utility Connections: Txhua qhov module yuav tsum muaj cov qauv siv hluav taws xob (dej nkag / qhov hluav taws xob, hluav taws xob ntsaws, dej ntws) kom nrawm nrawm- nce.

Kev tswj dej khib nyiab: Txuas chav dej mus rau lub hauv nruab nrab septic system los yog kev kho mob cog; suav nrog greywater recycling yog tias kev ruaj ntseg yog qhov tseem ceeb.

Fais fab mov: Npaj rau cov tshuab hluav taws xob thaub qab thiab hnub ci- npaj lub ru tsev yog tias tawm - daim phiaj.

CBC's flatpack thawv tsev tau suav nrog cov saum toj no, tag nrho ua ntej- ntsia rau hauv lub ru tsev, hauv paus lossis phab ntsa vaj huam sib luag, nws yog cov khoom siv ua ntej.





ADA/Inclusive Design: Tsawg kawg yog 5% ntawm cov qauv (los yog raws li txoj cai hauv zos) yuav tsum nkag mus tau -qhov rooj dav, yob- hauv da dej, tuav tuav.

Ntuj Teeb & Qhov cua: Ua kom lub qhov rais ua haujlwm tau zoo hauv txhua qhov modules; xav txog lub qhov rais clerestory los yog skylights nyob rau hauv txoj kev hauv tsev yog hais tias nruab hnub nrig yog txwv.

Tsis pub twg paub: Txoj hauj lwm qhov rais kom tsis txhob muaj kab ncaj nraim - ntawm - pom ntawm cov chav sab nraud; siv cov iav frosted los yog blinds qhov xav tau.





Txoj Kev Nkag Mus: Muab 6 m dav txoj kev nkag mus nyob ib ncig ntawm txhua qhov thaiv rau cov tsheb ceev thiab cov tsheb thauj khoom.

Sib nrug ntawm Blocks: Khaws ntau dua lossis sib npaug li 6 m sib cais ntawm cov blocks rau kev nyab xeeb hluav taws thiab kev pabcuam.

Modular Thauj: Paub meej tias 6.0 m × 2.438 m modules ua raws li txoj cai kev thauj mus los hauv cheeb tsam (feem ntau cov thawv ntim khoom yog 2.438 m dav, yog li qhov no feem ntau tau txais).





Kev tiv thaiv corrosion: Siv galvanized steel thav duab thiab marine- qib txheej txheej rau ntug hiav txwv lossis siab - qhov chaw khawb av. Lub ntsiab thav ntawv ntawm CBC lub tsev ntim khoom ntim yog galvanized thiab pleev xim zoo, lub neej tuaj yeem ncav cuag 15 ~ 20 xyoo.

Lub Tsev Dej: Tsim lub teeb steel ru tsev nrog txoj kab nqes kom zoo (Ntau dua lossis sib npaug li 3 degree) thiab gutter / downspout system tiv thaiv dej hauv pas dej.

Modularity rau yav tom ntej hloov: Tsim kev sib txuas kom yooj yim hloov module, reconfiguration, lossis deconstruction rau kev hloov chaw.





Daim ntawv tso cai tsim tsev: Xa cov qauv kev suav, cov phiaj xwm kev nyab xeeb hluav taws, thiab qhov chaw teeb tsa rau cov tub ceev xwm hauv zos. CBC muab cov qauv kev suav rau lub tsev ntim khoom flatpack, uas yog raws li 150km / h cua thauj khoom.

Environmental Impact: Txo cov av cuam tshuam; siv permeable paving rau kev taug kev; tswj cov dej ntws los ntawm cua daj cua dub.

Cov Qauv Ua Haujlwm Kev Noj Qab Haus Huv: Ua raws li ILO lossis lub teb chaws mining cov qauv rau thaj tsam tsawg kawg nkaus rau ib tus neeg (feem ntau Ntau dua lossis sib npaug li 6 m² / tus neeg).





Perimeter Fencing: Txhim kho kev ruaj ntseg nyob ib ncig ntawm lub chaw pw hav zoov nrog cov ntsiab lus nkag.

Teeb pom kev zoo: Muab LED teeb pom kev raws txoj kev hauv tsev, ntaiv, thiab ib puag ncig rau kev nyab xeeb hmo ntuj.

Kev soj ntsuam: Xav txog kev tiv thaiv CCTV ntawm qhov nkag thiab thaj chaw.





Kev soj ntsuam zoo: Ua cov kev ntsuam xyuas xau, kev kuaj xyuas hluav taws xob, thiab kev txheeb xyuas cov qauv ua ntej nyob. CBC's flatpack thawv tuaj yeem kho raws li cov cai hauv zos, tshwj xeeb rau cov hluav taws xob thiab cov kav dej.

Cov neeg siv phau ntawv: Muab phau ntawv qhia kev ua haujlwm thiab kev saib xyuas rau cov thawj coj hauv chaw pw hav zoov, suav nrog kev kaw hluav taws xob -tawm qhov chaw thiab cov txheej txheem xwm txheej ceev.

Los ntawm kev hais txog cov kev txiav txim siab no thaum lub sij hawm npaj, kev yuav khoom, thiab kev tsim kho, CBC's modular camp tuaj yeem xa tau muaj kev nyab xeeb, xis nyob, ruaj khov, thiab ua raws cov kev pab cuam uas txhawb nqa cov kev xav tau ntawm kev ua haujlwm ntawm txoj haujlwm mining thaum ua kom cov neeg nyob zoo- nyob.





CBC's modular container camp tsev nyob yog qhov tshwj xeeb zoo - haum rautej thaj chaw deb, cov peev txheej- thaj chaw nplua nujqhov twg kev tsim kho ib txwm siv tsis tau vim logistics, huab cua, lossis tsis muaj kev tsim kho vaj tse. Lub hom phiaj tseem ceeb hauv cheeb tsam suav nrog:

A. Australia

Vim li cas: Lub tsev rau qee lub ntiaj teb loj tshaj plaws hlau ore, thee, kub, thiab lithium mines (xws li, Pilbara cheeb tsam hauv Western Australia).

Cov xwm txheej: Cov chaw nyob deb heev, qhov kub thiab txias, nruj kev nyab xeeb thiab cov qauv kev nyob (piv txwv li, FIFO – Fly-Nyob hauv-Yav-Tawm mus pw hav zoov).

Kev thov: Kev xav tau siab sai rau - kev xa tawm sai, ruaj khov, thiab ua raws cov neeg ua haujlwm hauv zos.

B. Canada (Northern Territories, Alberta, British Columbia)

Vim li cas: Kev lag luam mining loj hauv kub, tooj liab, npib tsib xee, thiab cov khoom tsis tshua muaj hauv ntiaj teb.

Cov xwm txheej: Lub caij ntuj no hnyav, permafrost, txwv txoj kev nkag tau yooj yim - cov chav nyob nrog cov rwb thaiv tsev siab yog qhov tseem ceeb.

Kev cai: Kev tsom ntsoov rau cov neeg hauv paus txawm, kev tiv thaiv ib puag ncig, thiab kev noj qab haus huv ntawm cov neeg ua haujlwm.

C. Chile & Peru (Tebchaws Andean, South America)

Vim li cas: Leading global producers of copper and lithium; many mines at high altitudes (>3,000 m).

Cov xwm txheej: Seismic kev ua ub no, huab cua arid, logistical kev cov nyom nyob rau hauv roob roob.

trend: Kev thov nce ntxiv rau ESG- raws li lub tsev nyob ib ntus uas muaj kev cuam tshuam ib puag ncig tsawg.

D. Sub-Saharan Africa (xws li Democratic Republic of Congo, Ghana, Namibia)

Vim li cas: Muaj ntau ntau hauv cobalt, kub, pob zeb diamond, thiab uranium.

Cov xwm txheej: Txwv tsis pub muaj peev xwm tsim kho hauv zos, kev txhawj xeeb txog kev nyab xeeb, huab cua sov.

Xav tau: Kev ruaj ntseg, scalable, thiab yooj yim demobilized camps uas tuaj yeem hloov chaw.

E. Middle East (Saudi Arabia, Oman, UAE)

Vim li cas: Kev nthuav dav kev tshawb nrhiav pob zeb hauv qab lub teb chaws muaj ntau hom phiaj xwm (xws li Saudi Vision 2030).

Cov xwm txheej: Thaum tshav kub kub, cua daj cua dub, ua haujlwm ceev sijhawm.

Nyiam: Cua-conditioned, xuab zeb- tiv taus cov chav nyob nrog MEP systems.

F. Indonesia & Papua New Guinea

Vim li cas: Cov neeg tsim khoom loj nickel, tooj liab, thiab kub.

Cov xwm txheej: Tropical rainforest, high humidity, monsoon seasons, kob logistics.

Kev xav tau: Corrosion-cov ntaub ntawv resistant, elevated foundations, pwm-resistant interiors.





Hom neeg siv	Yam ntxwv
Cov tuam txhab loj Mining	BHP, Rio Tinto, Glencore, Vale, Freeport-McMoRan, Barrick Gold - ua haujlwm loj - nplai, ntev - lub neej mines xav tau 500–2, 000+ neeg pw hav zoov.
Nruab nrab-Tier Miners	Equinox Kub, Pan American Silver, Lundin Mining - xav tau kev hloov pauv, tus nqi -cov kev daws teeb meem zoo rau 100-500 tus neeg ua haujlwm.
Junior Explorers	Cov tuam txhab me me ua qhov kev tshawb fawb txog qhov ua tau zoo - xav tau luv luv - lub sijhawm (6-24 lub hlis) cov chaw pw hav zoov nrog kev yooj yim demobilization.
EPC Cov neeg cog lus	Cov tuam txhab xws li Fluor, Bechtel, Worley, lossis Ausenco feem ntau tau txais cov chaw pw hav zoov uas yog ib feem ntawm cov pob khoom ntawm pob zeb pob zeb.
Tsoom fwv los yog lub xeev -Owned Enterprises	Hauv cov tebchaws xws li Tuam Tshoj (CMOC), Russia (Norilsk Nickel), lossis Chile (Codelco), lub xeev -cov chaw txhawb nqa tswj hwm vaj tse.





Kev ceev ntawm kev xa tawm: Mines xav tau chaw pw ua haujlwm nyob rau hauv 8-16 lub lis piam -modular beats stick-ua tau los ntawm 40–60% hauv lub sijhawm.

Nqi Efficiency: Tsawg zog ua haujlwm, lub Hoobkas- tswj tau qhov zoo, thiab rov siv tau txo TCO (Tag nrho Tus Nqi Ntawm Cov Tswv Cuab).

ESG & Worker Welfare: Cov neeg ua haujlwm niaj hnub no ntsib kev nyuaj siab los muab cov vaj tsev muaj txiaj ntsig-cov chav ntiag tug, chav dej, Wi-Fi, thiab chaw ua si tam sim no yog qhov kev cia siab.

Project Lifecycle Flexibility: Cov chaw pw hav zoov tuaj yeem nthuav dav, txo qis, lossis hloov chaw raws li kuv cov theem hloov.





CBC's modular container camp tsev nyob qauv piav qhia -featuring ntxaib- kab, hauv nruab nrab txoj kev, 3- zaj dab neeg stacking nrog lub teeb steel vov tsev-yog qhov zoo tshaj plaws nyob rau hauvloj -tej mining tej yaam num nyob rau tej thaj chaw deb ntawm Australia, Canada, Latin America, thiab Africa. Nws ua raws li cov kev xav tau ntawm kev ua haujlwmcov tsev mining loj thiab cov neeg cog lus EPCleej twg ua qhov tseem ceeb ntawm kev ceev, kev nyab xeeb, scalability, thiab ua raws.

CBC sib koom ua kerobust engineering, huab cua-tsim qauv, thiab puv - kev pabcuam(nrog rau kev tu, tu, thiab kev tswj xyuas kev siv hluav taws xob) yog kev ntes tus nqi siab tshaj plaws hauv ntu kev lag luam loj hlob no, peb twb muaj ntau qhov haujlwm tiav hauv Philippines, Indonesia, Chile thiab lwm yam.
