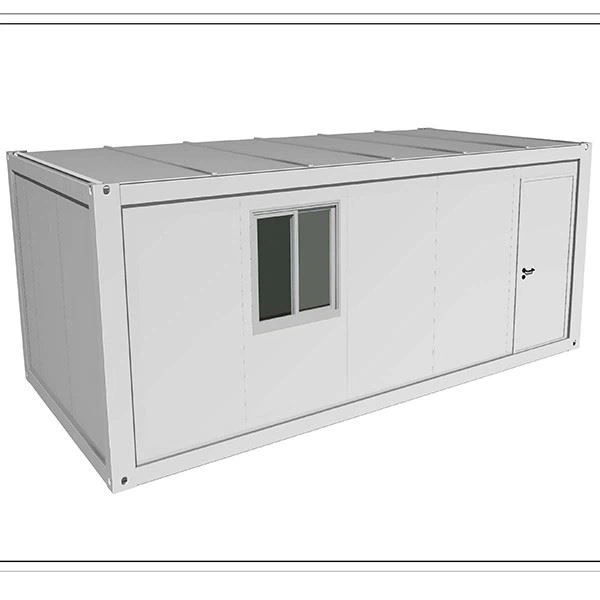

Prefabricated Detachable Container House
video
Prefabricated Detachable Container House

Prefabricated Detachable Container House

Size:6000*2438*2591mm
Steel Structure:Prefab steel structure
Wall Panel:{{0}}.326/0.376/0.426/0.476mm THC steel sheet
50/75/100mm THC EPS / rock wool / glass wool / PU sandwich panel

Khoom Taw qhia

The best Prefabricated Detachable Container House from China

Integrated PU foamed roof, 100 percent water proof and better insulation;
Embedded electrical and plumbing system;
Prefabricated doors and windows;
8 hours assembling time for one unit
SOC packing, one unit per package;
With gutter and pipe system, can also add extra LGS roof;
With structure calculation
Full set of concept designs and installation instructions
Can build in three floors
Free combination to achieve your space requirements
Different color options
Competitive price
Can be moved or disassembled and reassembled
Can with bathroom
We have also expandable container house for low cost housing projects
We have detachable container house for low cost camp project
We have steel structure for warehouse/workshop project


Item

Specification

Size

6000*2438*2591mm

Steel Structure

Prefab steel structure

Wall Panel

{{0}}.326/0.376/0.426/0.476mm THC steel sheet

50/75/100mm THC EPS / rock wool / glass wool / PU sandwich panel

Wall Color

White grey, Green and other customized RAL colors

Roof

{{0}}.326/0.376/0.426/0.476mm THC steel sheet

60mm injected PU foaming insulation, patented roof system

Door

{{0}}.326/0.376/0.426/0.476mm THC steel sheet

50mm THC EPS / rock wool / glass wool /pu sandwich panel with lock

Window

Aluminum PVC sliding door with security bar

Floor

MGO / cement fiber floor board

Electricity

Embedded wires, lights, sockets, switches, DB, different standards;

Wind Resistance

Wind speed Less than or equal to 210 km/h

Earthquake Resistance

Grade 8

Snow Load Capacity Of Roofing

1kn/m2

Live Load Capacity Of Roofing

1kn/m2

Wall Permitted Loading

0.6kn/m2


Frame: Q355 steel structure is hot-dip galvanized and completed welding, coated with hot galvanized zinc 100g/m2 plus surface uses electrostatic powder treatment finish 100um. Q355 Steel is better than Q235, and with HDG treatment with powder spraying, it would keep the frame in high anti-corrosion.


Roof: For the roof, our cases is PU foaming (45kg/m3 which meets standard of PIR) which has high integrity for the airtightness which would be better than common EPS sandwich panel or glass wool as roof insulation.


Panel: For the sandwich panels, we remark with density and thickness of both sides of steel sheets, in the same time, you can find the treatment with Aluminum zinc magnesium AMZ galvanized 100g/m2 with PE baking finish 20/5um. which can last more than 25 years.


product details--Shipping Container House


Advantages


No.

Item

CBC Prefabricated Detachable Container House

Evolution

Other Brand Prefabricated House

Evolution

1

Steel Structure

Galvanized steel beams in 3mm thickness, high structure strength and durability

★★★★★

only painted steel beams in 2~2.5mm thick, low structure strength and not durabe

★★★

2

Electrical System

All embedded in the roof and wall panels, save onsite labor cost

★★★★★

need to be installed onsite, cause extra onsite labor cost

★★★

3

Plumbing Pipes

Pre-installed in the base frame, save onsite labor cost

★★★★★

need to drill holes and install on site, cause extra onsite labor cost

4

Window & Door

pre-installed in the wall panels, save onsite labor cost

★★★★★

need to be installed onsite, cause extra onsite labor cost

★★★

5

Steel Pretreatment

CBC advanced sand blasting equipment line, improve painting adhesion and durability

★★★★★

outsourced processing or no pretreatment, low painting adhesion and durability

★★★

6

Painting

CBC painting line to ensure good painting quality

★★★★★

outsourced painting, can't ensure the painting quality

★★★

7

advanced paint technology, water-based painting available, environment friendly

★★★★★

only oil-based painting, cause damage to the environment

★★★

8

Degree of Prefabrication

70-90 percent as per customer requirement, save onsite labor cost

★★★★★

around 30 percent or only loosen parts available, cause extra site labor cost

★★

9

Marking

two-dimensional code component tracking system can effectively manage each component

★★★★★

No label or very simple label, can't track every component

★★

10

Fast Installation

4 workers could install 2 units in one day.
Offering installation manuals, videos guidance, or send people onsite to support.

★★★★★

Need many workers on site to install.
Without installation manuals, videos guidance, couldn't send people overseas.

★★

11

Packing & Delivery

special steel packing pallets to protect materials within the shipping container during the long-distance shipping

★★★★★

no packing frame, easy to cause damage to the material

★★★

12

SOC packing method for short-distance transportation, no need to load into shipping container, save the shipping cost

★★★★★

only can load into shipping container

★★★


Applications


Construction site office or accommodation camp;

Mining site office or accommodation camp;

Isolation rooms;

COVID hospital;

Temporary office or living house

Low-cost house;

Granny backyard flat;

Kiosk booth;

Guard house;

Rent for other temporary use.

product appelications--Shipping Container House


Related Projects


Indonesia:

PT Merdeka accommodation camp-288 rooms with ensuite;

AMMAN accommodation camp-480 rooms with ensuite;


Chile:

FRIOSAN cold storage—1600sqm warehouse with two floors office area, in-depended dining and access room

Reduccion casa

Casa Laguna Verde-156sqm two floors house


Austrian:

Polyfit workshop and office building—in total around 2000sqm, combine steel structure, light gauge steel frame and second-hand shipping containers;


Philippines:

SCPA workshop-3200sqm with Prefabricated Detachable Container House inside

SG Eco workshop-3600sqm warehouse with two floors office in 250sqm,

Iriga Factory,

BBL Camp—24 rooms accommodation camp with public services such as dining hall, gym room;

Maria De Sio Resort-320sqm

SMMCI Camp—1300sqm office building built by flatpack container house and 2600sqm warehouse

Construction Site Expandable Container House


PNG:

PNG concrete Development—13 steel structure warehouse in around 1500sqm each;


Virgin Island: 10000sqm Distribution center


New Caledonia:

Alain's warehouse-five floors warehouse building with cargo lift, in total 1750sqm

Le Tigre Warehouse—three floors warehouse with ramp, total 3700sqm


Mozambique:

Nakala Resort—32 units of light gauge steel house as a beach side resort;


Tonga: Tonga Power Plant—3600sqm


Reunion Island: ARC-18/19 House Project—240sqm


Detachable container house projects-14


FAQ


Q: Are you a factory or a trading company?

A: Hangzhou Xixi Building Co., LTD. is a factory located in Xiaoshan District, Hangzhou, China.


Q: What's your supply capacity?

A: Annual production capacity details are as follows:
Container house: 7200sets
Prefab house; 564000 square meters
Steel structure: 360000 square meters.


Q: How to install the PU Insulated Expandable Container Homes?

A: We will provide detailed instructions along with installation videos. Professional installation engineers' team is also available for some special oversea projects at client's cost if it is necessary.


Q: How long is your delivery time for Prefabricated Detachable Container House?

A: Will be normally 30 days according to different order Qty and requests. This has included free architectural drawings, shop drawings, installation instructions.


Q: How do you guarantee the quality of the products?

A: Quality is the future. Quality is the top priority.

We have a five people QC team inspecting production daily, they will follow the shop drawings strictly and check every part/project at the beginning, in the middle and for finished products.

We can also assemble some units in our factory for some special customized projects to make sure everything is good enough.


Q: How can I get a quotation for my project?

A: We can offer detailed quotations according to your drawing. If you have no drawing, our designer can offer you some designs based on your detailed requirements. Quotations will be provided after the confirmation of the designs.
