CBC Flatpack Thawv Chaw Ua Haujlwm Ib Ntus Rau Chile PTC Tuam Txhab

Tsim, Cov Ntawv Teev Npe thiab Kev Ua Lag Luam Adaptability ntawm CBC Flatpack Thawv Chaw Ua Haujlwm Ib ntus rau Chile PTC Lub Tuam Txhab





Qhov project no yog ob-zaj dab neeg kev tsim kho ib ntus ua haujlwm rau Chile PTC Lub Tuam Txhab qhov chaw tsim kho, siv CBC tus qauv Flatpack thawv tsev. Tus qauv qhov ntev ntawm CBC Flatpack thawv tsev yog W2438mm × L6000mm × H2591mm. Txhua lub thawv yog tsim los ntawm ib qho tseem ceeb PU ua npuas ncauj ru tsev (nrog prefabricated circuits nyob rau hauv lub Hoobkas), ib tug tag nrho prefabricated pem teb (steel qauv nrog waterway configuration, cement fiber ntau hauv pem teb thiab 2 hli PVC pem teb), 14pcs ntawm EPS tus nplaig- thiab -groove sandwich phab ntsa panels (75mm tuab qhov rooj 4 thiab C), prefabricated qhov rooj. kab. Tag nrho lub tsev muaj 16 lub thawv ntim hauv tag nrho, suav nrog 11 lub thawv rau hauv pem teb thiab 5 lub thawv rau hauv pem teb thib ob, nrog rau kev tsim qauv tsim nyog kom tau raws li cov kev xav tau ntawm qhov chaw ua haujlwm, chav noj mov, huv si thiab so.

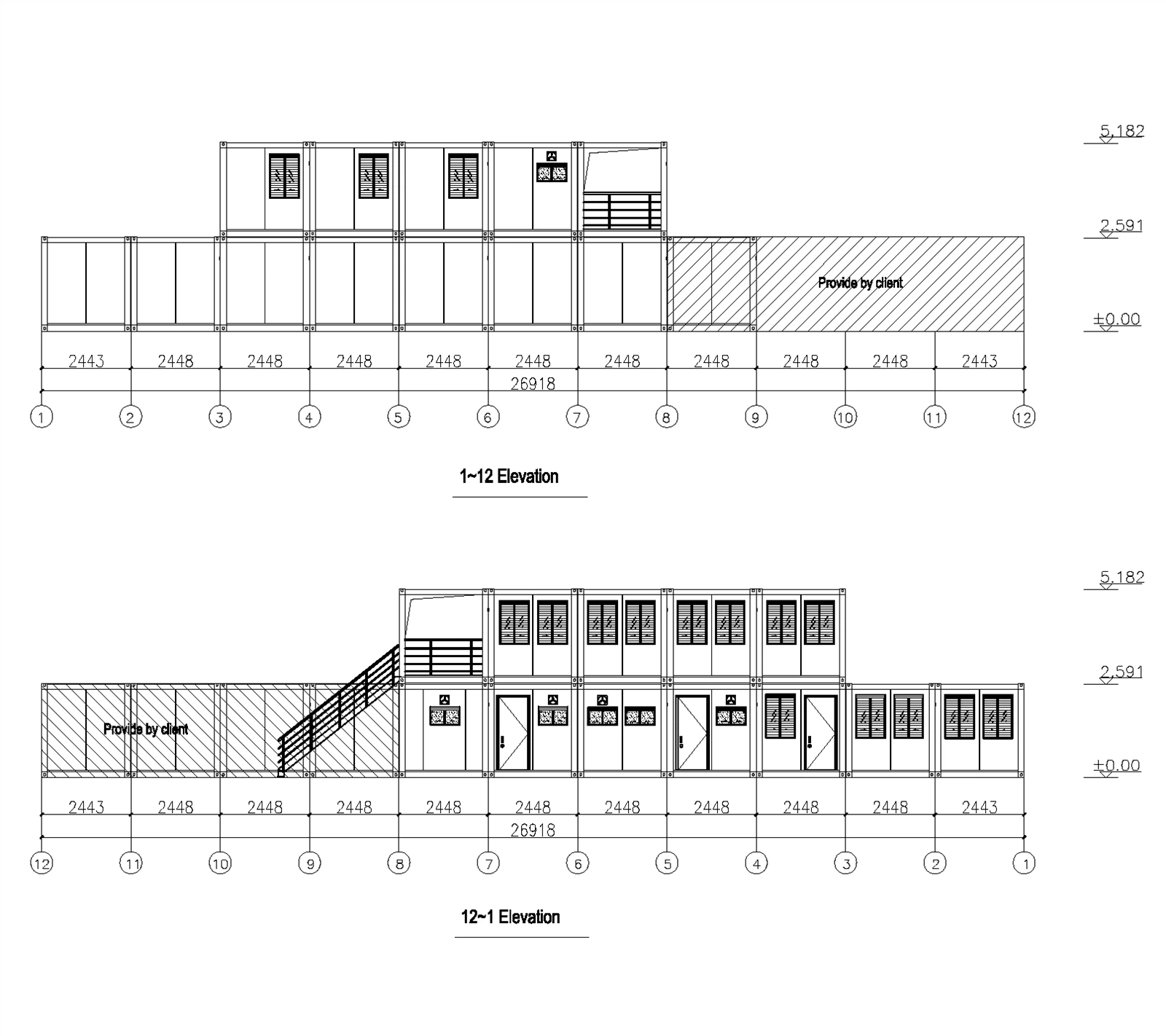

2.1 Zuag qhia tag nrho layout

Lub chaw ua haujlwm ib ntus yog ob-zaj dab neeg tsev nrog tag nrho 16 CBC tus qauv Flatpack ntim. Thawj pem teb yog tsim los ntawm 11 lub thawv ntim los ntawm sab hnub poob mus rau sab hnub tuaj, thiab hauv pem teb thib ob yog tsim los ntawm 5 lub thawv, uas tau muab tso ncaj qha rau saum lub 3rd mus rau 7th ntim ntawm thawj pem teb. Lub ru tsev ntawm cov thawv uas tseem tshuav nyob rau hauv thawj pem teb yog hloov mus rau hauv lub sam thiaj nkag tau, uas tau muab kaw los ntawm CBC kev cai railings. CBC steel staircase yog ntsia rau sab qaum teb ntawm thawj pem teb los txuas rau pem teb thawj thiab thib ob rau kev khiav tsheb ntsug.

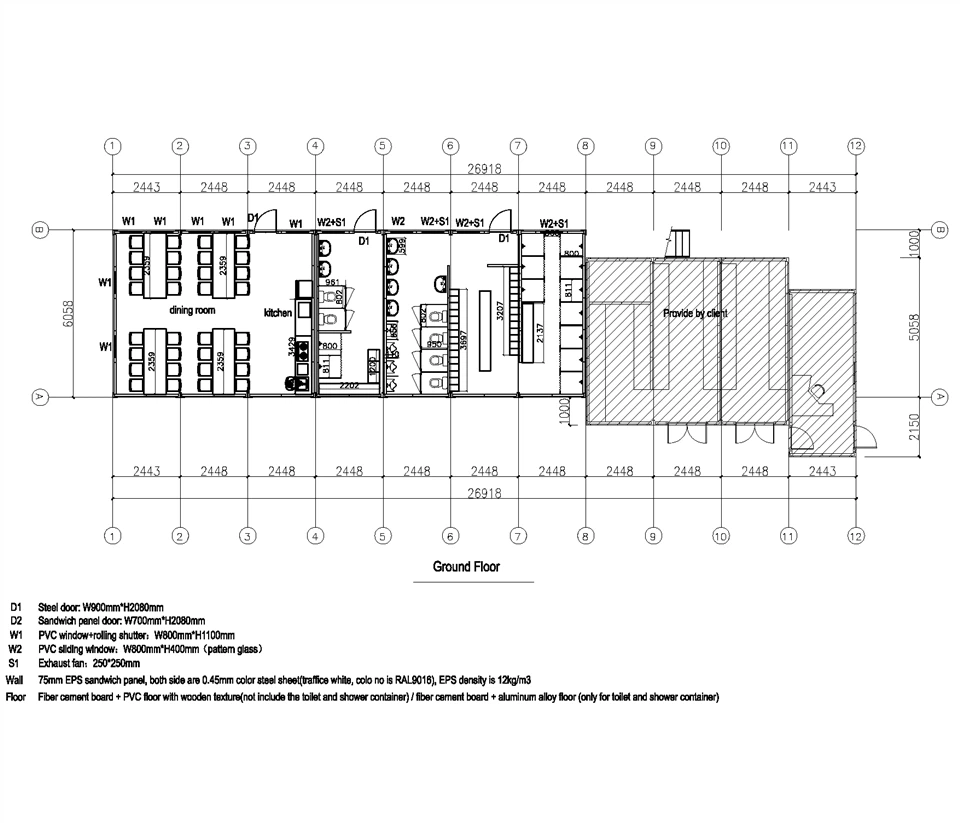

2.2 Thawj Pem Teb Tsim (11 Thawv)

Ntim 1-3 (Westmost): Txuas raws li kev sib koom ua ke hauv tsev noj mov loj. Peb lub thawv ntim tau zoo sib xws los ntawm CBC kev cai sib txuas qhov chaw, thiab cov khoom siv sab hauv raug tshem tawm los ua qhov chaw loj. Cov dej ua ntej ntawm lub thawv ntim hauv pem teb yog txuas nrog kom tau raws li cov dej xav tau ntawm lub tsev noj mov (xws li dej haus thiab dej ntxuav). Lub prefabricated circuits nyob rau hauv lub PU ua npuas ncauj ru tsev yog txuas mus rau lub installation teeb pom kev zoo thiab cov khoom siv hluav taws xob xav tau rau lub tsev noj mov.

Thawv 4-5: Siv ua chav dej. Thawv 4 yog tsim los ua ib tug txiv neej lub tso zis tso quav, thiab Thawv 5 yog tsim los ua ib tug poj niam lub tso zis tso quav. Lub prefabricated waterway system ntawm lub thawv hauv pem teb yog siv rau nruab squatting pans, tes ntxuav basins thiab lwm yam huv si chaw, thiab cov kua dej yog txuas nrog rau qhov chaw nyob rau hauv ib ntus cov kav dej. Lub qhov rooj prefabricated thiab qhov rais ntawm phab ntsa panels yog khaws cia kom ntseeg tau tias qhov cua thiab teeb pom kev hauv chav dej.

Ntim 6-7: Siv ua chav hloov pauv thiab chav dej pej xeem. Thawv 6 yog chav hloov pauv, nrog cov lockers yooj yim ntsia (tso rau ntawm lub thawv steel qauv); Thawv 7 yog chav dej pej xeem, uas siv cov dej ua ntej ntawm lub thawv rau nruab cov da dej thiab cov dab dej, thiab ua haujlwm zoo ntawm kev kho dej tsis zoo ntawm 2 hli PVC pem teb. Cov phab ntsa vaj huam sib luag tau nruab nrog lub qhov rais qhov cua kom tiv thaiv kom tsis txhob ya raws.

Thawv 8-10: Txuas raws li qhov loj- chaw ua haujlwm, hloov 1.5 metres sab qab teb raws li tag nrho cov txheeb ze rau Cov Thawv 1-7 thiab 11. Peb lub thawv txuas nrog rau tag nrho, nrog cov kev faib sab hauv tshem tawm los ua ib qho chaw qhib chaw ua haujlwm rau cov neeg ua haujlwm hauv chaw ua haujlwm. Cov prefabricated circuits thiab teeb pom kev zoo nyob rau hauv lub ru tsev yog siv, thiab cov sockets ntxiv yog ntsia raws li kev xav tau. Lub qhov rooj prefabricated thiab qhov rais ntawm phab ntsa panels raug kho kom tsim nyog kom muaj teeb pom kev zoo thiab qhov cua.

Thawv 11: Hloov 1.5 meters sab qab teb txheeb ze rau Cov Thawv 8-10 (3 meters sab qab teb txheeb ze rau Thawv 1-7), siv los ua tus thawj tswj hwm lub chaw ua haujlwm ywj pheej. Lub thawv khaws nws cov qauv kev ywj pheej qub, nrog lub rooj, lub rooj zaum thiab cov ntaub ntawv tso rau hauv. Lub qhov rooj thiab qhov rais prefabricated ntawm phab ntsa vaj huam sib luag yog siv los ua qhov nkag thiab tawm thiab lub qhov rais teeb pom kev zoo, thiab sab hauv Circuit Court txuas nrog rau nruab cua txias, teeb pom kev zoo thiab lwm yam khoom siv.



2.3 Tsim Pem Hauv Ntej (5 Thawv)

Hauv pem teb thib ob yog tsim los ntawm 5 lub thawv, uas feem ntau muab tso ncaj qha rau saum lub 3rd mus rau 7 lub thawv rau hauv thawj pem teb thiab txuas mus rau qhov loj - chaw ua haujlwm. 5 lub thawv ntim tau zoo sib xws los ntawm CBC kev cai sib txuas qhov chaw, thiab cov khoom siv sab hauv raug tshem tawm los tsim ib qho chaw qhib chaw ua haujlwm rau pab pawg tswj hwm. Lub ru tsev prefabricated PU ua npuas ncauj (nrog circuits) thiab hauv pem teb ntawm txhua lub thawv tau khaws cia thiab txuas nrog. Cov phab ntsa vaj huam sib luag rau sab hnub tuaj thiab sab hnub poob yog nruab nrog lub qhov rais ntxiv kom muaj teeb pom kev zoo. Sab qab teb thiab sab qaum teb ntawm lub tsev thib ob yog nruab nrog guardrails (raws li lub sam thiaj guardrails nyob rau hauv thawj pem teb) kom muaj kev ruaj ntseg.

2.4 Kev Tsim Kho Kev Pabcuam Pabcuam

CBC Steel Staircase: Tau nruab rau sab qaum teb ntawm thawj pem teb, nruab nrab ntawm Cov Thawv 8 thiab 9, txuas rau hauv pem teb thiab pem teb thib ob. Lub staircase yog ua los ntawm CBC customized steel qauv, nrog ib tug dav ntawm 1.2 meters, anti- kauj ruam, thiab tuav ntawm ob sab (raws li lub sam thiaj guardrail style). Lub staircase yog tsau rau ntawm cov qauv steel ntawm lub thawv kom muaj kev ruaj ntseg thiab ua tau raws li qhov yuav tsum tau muaj seismic ntawm Chile.

Kev nkag mus tau yooj yim: Lub ru tsev ntawm Cov Thawv 1-2, 8-11 nyob rau hauv thawj pem teb yog hloov mus rau hauv lub balconies (lub ru tsev ntawm Thawv 3-7 yog them los ntawm ob pem teb ntim). Lub PU ua npuas ncauj lub ru tsev ntawm lub thawv yog siv los ua lub sam thiaj hauv pem teb, thiab CBC kev cai railings (qhov siab 1.1 meters) tau nruab ib ncig ntawm lub sam thiaj kom muaj kev nyab xeeb. Cov railings yog tsau rau ntawm lub thawv ntim kom ruaj ntseg.

Txuas Txuas: Tag nrho cov ntim khoom (nrog rau kev sib txuas ntawm thawj thiab thib ob pem teb, thiab kev sib txuas ntawm cov thawv uas nyob ib sab ntawm tib pem teb) txuas nrog siv CBC kev cai siab - lub zog txuas bolts thiab sealing strips kom ruaj ntseg tag nrho ntawm lub tsev thiab tiv thaiv cov dej xau thiab huab cua.

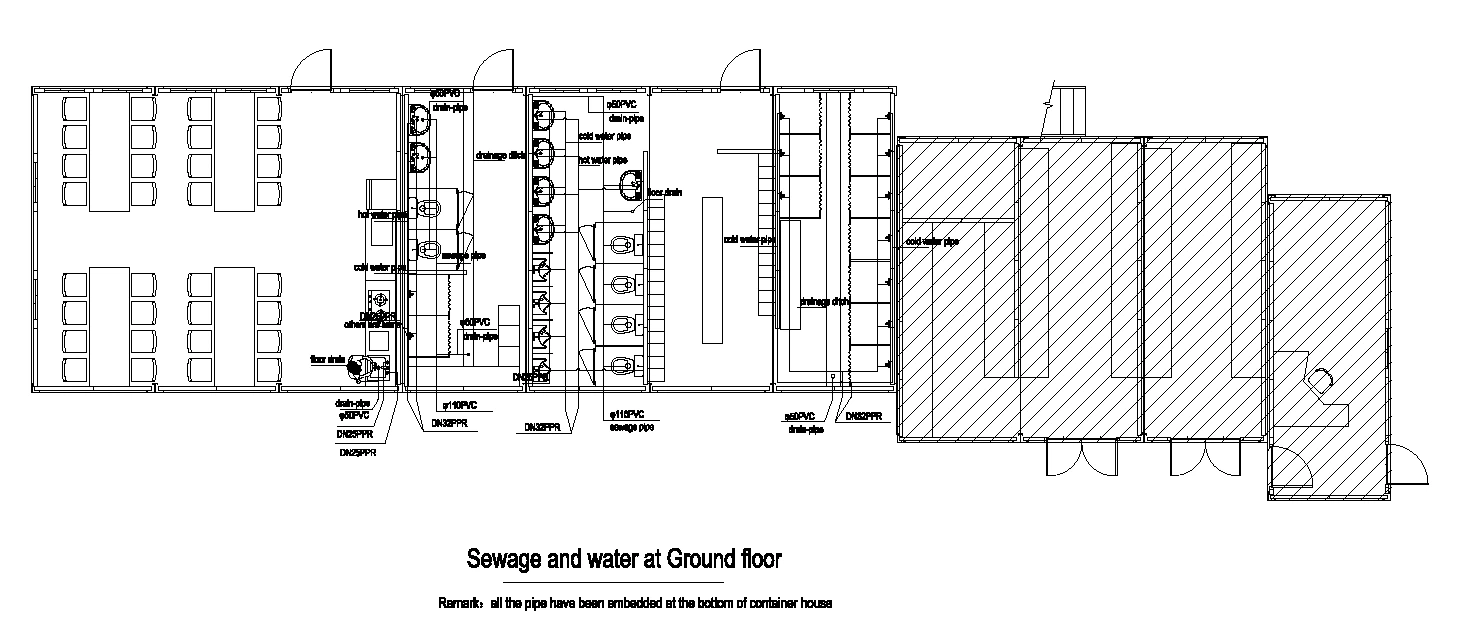

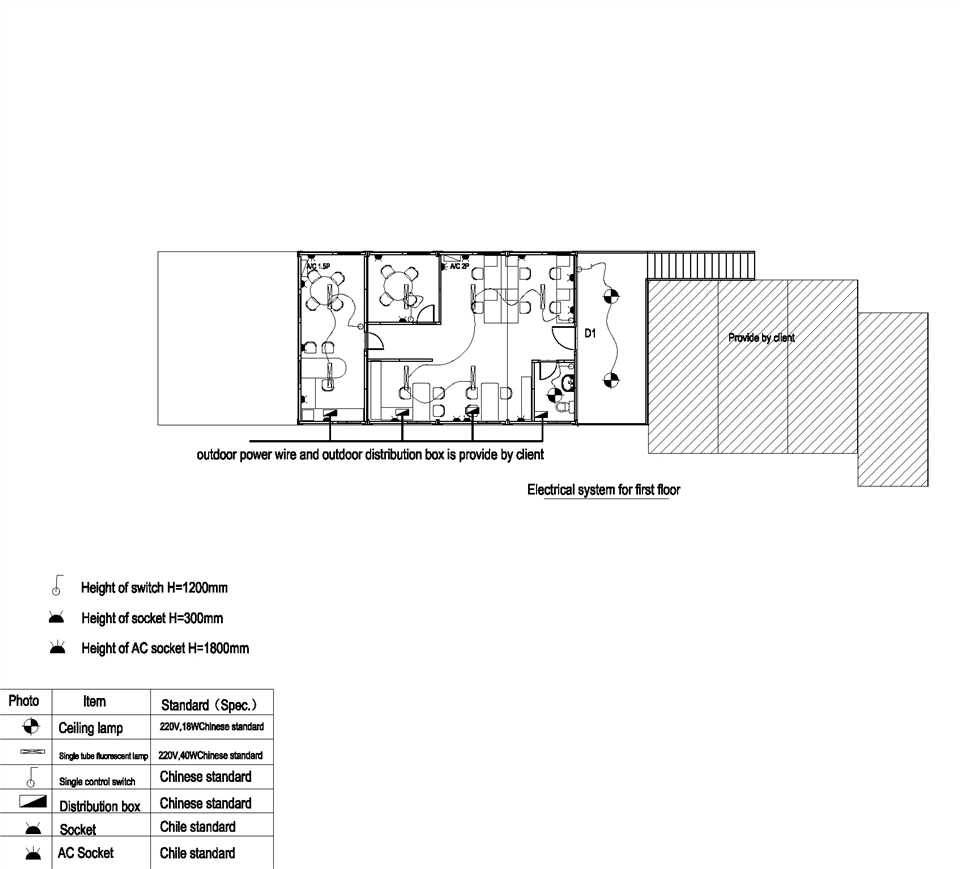

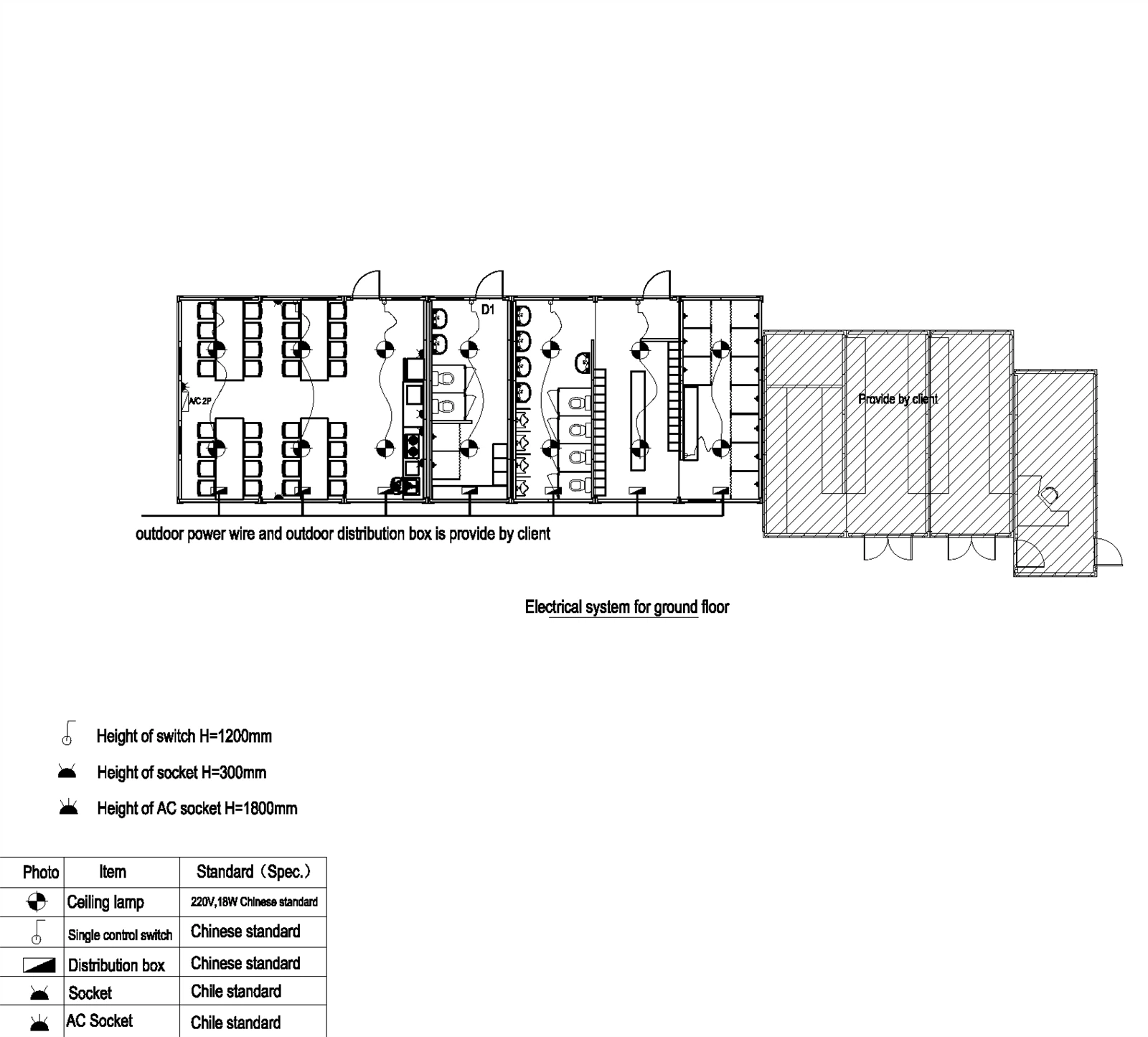

Dej thiab hluav taws xob Extension: Raws li lub hauv paus ntawm lub prefabricated dej thiab hluav taws xob system ntawm lub thawv, txuas cov kav dej thiab circuits kom tau raws li qhov xav tau ntawm txhua qhov chaw (xws li lub tsev noj mov, chav dej, thiab chav ua haujlwm cua txias). Cov kav dej thiab cov kab hluav taws xob txais yuav cov khoom siv tiv thaiv corrosion-cov ntaub ntawv resistant kom haum rau hauv cheeb tsam huab cua ntawm Chile.





Daim ntawv teev cov khoom siv tau muab faib ua peb ntu: cov txheej txheem ntim khoom, kev sib txuas thiab cov khoom siv pabcuam, thiab cov khoom siv ntxiv, kom ntseeg tau qhov tseeb thiab nthuav dav rau kev siv siv. Tag nrho cov ntaub ntawv ua tau raws li cov qauv ntawm Chile thiab cov kev cai zoo ntawm CBC Company.

3.1 Standard Thawv Cheebtsam (16 Thawv hauv Tag Nrho)

Khoom npe	Specification / Qauv	Ntau	Qhov hnyav (kg)	Lus hais
Integral PU ua npuas ncauj ru tsev (nrog prefabricated Circuit Court)	W2438 × L6000mm, nrog prefabricated hlau thiab teeb	16 qab	2880	CBC tus qauv, txhua 180kg; Circuit Court prefabricated nyob rau hauv Hoobkas
Prefabricated pem teb	W2438 × L6000mm, steel qauv + waterway + cement fiber floor + 2mm PVC pem teb	16 qab	5760	CBC tus qauv, txhua 360kg; waterway prefabricated rau kev siv txhua hnub
EPS tus nplaig-thiab-groove sandwich phab ntsa vaj huam sib luag	75mm tuab, nrog prefabricated qhov rooj thiab qhov rais	224 qab	7840	14 daim ib lub thawv, txhua 35kg; qhov rooj thiab qhov rais prefabricated
CBC kev cai kab	H2591mm, steel qauv, customized los ntawm CBC	64 qab	3840	4 daim ib lub thawv, txhua 60kg; siv los txhawb lub ru tsev thiab txuas cov plag tsev
Prefabricated qhov rooj thiab qhov rais accessories	Sib piv cov phab ntsa vaj huam sib luag, aluminium alloy ncej	32 teeb (16 qhov rooj, 16 qhov rais)	512	1 qhov rooj thiab 1 qhov rais rau ib lub thawv, txhua lub teeb 16kg
Prefabricated Circuit Court accessories	Hloov, qhov (sockets), xov hlau, teeb	16 sets	256	Sib piv cov PU npuas ru tsev Circuit Court, txhua lub teeb 16kg
Prefabricated waterway accessories	Cov kav dej, valve, connectors	16 sets	384	Sib piv cov pem teb prefabricated, txhua lub teeb 24kg
Subtotal ntawm Standard Cheebtsam	-	-	21472	-



3.2 Custom Connecting and Auxiliary Materials

Khoom npe	Specification / Qauv	Ntau	Qhov hnyav (kg)	Lus hais
CBC kev cai siab -lub zog txuas bolt	M20 × 80, 10.9 qib, tiv thaiv -corrosion	800 pieces	720	Siv los txuas cov thawv thiab cov plag tsev uas nyob ib sab; ib 0,9kg
Sealing sawb	Waterproof thiab dustproof, EPDM khoom	1000 meters	500	Siv rau cov thawv txuas txuas; 0.5 kg ib meter
CBC kev cai steel staircase	Dav 1.2m, steel qauv, tiv thaiv- kauj ruam	1set ib	800	Txuas thawj thiab thib ob pem teb, nrog rau tes tuav; tiv thaiv - seismic tsim
CBC kev cai sam thiaj railing	Qhov siab 1.1m, steel qauv, tiv thaiv -corrosion	80m ua	960	Siv rau thawj- pem teb nkag mus tau lub sam thiaj thiab thib ob- pem teb ib puag ncig; 12kg ib m
Hlau txuas beam	H200 × 100 × 5 × 8, steel qauv	30 pcs	720	Siv los ntxiv dag zog rau kev sib txuas ntawm cov thawv ntim khoom; ib 24kg
Anti- xim pleev xim	Anti- xeb, tiv thaiv-ultraviolet, haum rau Chile huab cua	50 cev	500	10 kg ib chim; siv rau steel Cheebtsam xws li ntaiv thiab railings
Subtotal ntawm Custom Auxiliary Materials	-	-	4200	-



3.3 Cov khoom siv ua haujlwm ntxiv

Khoom npe	Specification / Qauv	Ntau	Qhov hnyav (kg)	Lus hais
Cov chaw huv huv	Squatting lauj kaub, ntxuav tes, da dej	1 teeb (6 squatting lauj kaub, 4 basins, 4 da dej)	360	Siv rau chav dej (Containers 4-5) thiab chav dej (Container 7)
Cov kav dej txuas ntxiv	Cov khoom siv PVC, Φ50 / Φ32	200 meters	200	Txuas ntxiv txoj kev ua dej ua ntej kom txuas cov chaw huv huv thiab tsev noj mov
Circuit Court extension	Tooj hlau, 2.5mm² / 4mm²	300 meters	150	Txuas lub prefabricated Circuit Court rau nruab cov qhov (socket) ntxiv thiab cov cua txias
Ntxiv qhov (sockets) thiab cov keyboards	Waterproof, qib industrial	50 sets	50	Siv rau chaw ua haujlwm, tsev noj mov thiab lwm qhov chaw; ib 1kg
Waterproof txheej	Polyurethane waterproof txheej	20 cev	200	10 kg ib chim; siv rau chav dej (Container 7) thiab lub sam thiaj hauv pem teb
Locker	Steel qauv, ib lub qhov rooj	20 daim	600	Siv rau kev hloov chav (Container 6); ib 30kg
Qhov rai ntxiv	Aluminium alloy, 1.2m × 1.0m, nrog iav	10 daim	320	Muab tso rau ntawm ob- cov thawv hauv pem teb kom muaj teeb pom kev zoo
Subtotal ntawm Cov Khoom Siv Ua Haujlwm Ntxiv	-	-	1880	-



3.4 Tag Nrho Cov Khoom Siv

Tag nrho cov koob tshuaj ntawm cov txheej txheem ntim khoom: 21472 kg (21.47 tons)

Tag nrho cov khoom siv ntawm cov khoom siv pabcuam: 4200 kg (4.20 tons)

Tag nrho cov khoom siv ua haujlwm ntxiv: 1880 kg (1.88 tons)

Tag nrho cov koob tshuaj ntawm tag nrho qhov project: 27552 kg (27.55 tons)



4.1 High Prefabrication Degree thiab kev tsim kho sai

Tag nrho cov khoom ntawm CBC Flatpack thawv tsev (ru tsev, pem teb, phab ntsa panels, kab) yog prefabricated nyob rau hauv lub Hoobkas, suav nrog circuits, dej, qhov rooj thiab qhov rais. Nyob rau ntawm qhov chaw tsim kho, tsuas yog yuav tsum tau sib dhos thiab sib txuas, uas ua rau lub sijhawm siv sijhawm luv. Rau ob qhov no - zaj dab neeg ib ntus chaw ua haujlwm project, ntawm - qhov chaw sib dhos tuaj yeem ua tiav nyob rau hauv 15 hnub, uas yog nrawm dua li cov cib ib txwm ua - cov qauv ua vaj tse, ua tau raws li qhov xav tau ceev ntawm qhov chaw tsim kho rau qhov chaw ua haujlwm ib ntus.



4.2 Muaj zog Mobility thiab Reusability

Lub tsev ntim khoom siv cov qauv tsim qauv, thiab txhua lub thawv yog ib chav tsev ywj pheej, uas tuaj yeem muab tshem tawm, txav mus los thiab rov siv tau yooj yim. Tom qab lub tuam txhab PTC kev tsim kho tiav lawm, lub chaw ua haujlwm ib ntus tuaj yeem raug tshem tawm thiab thauj mus rau lwm qhov chaw tsim kho kom rov ua dua, txo cov khoom pov tseg thiab cov nqi tsim kho. Nyob rau tib lub sijhawm, kev puas tsuaj rau qhov chaw tsim kho yog me me thaum lub sij hawm disassembly thiab sib dhos, uas yog raws li lub tswv yim ntawm kev tsim kho ntsuab.



4.3 Kev ruaj ntseg zoo thiab Seismic Performance

Lub tsev ntim khoom yog tsim los ntawm siab - lub zog steel qauv kab thiab cov khoom sib txuas, nrog kev ruaj ntseg tag nrho. Ua ke nrog kev tiv thaiv - seismic tsim ntawm steel staircase thiab txuas kab teeb, nws tuaj yeem ua tau raws li qhov yuav tsum tau muaj seismic siv ntawm Chile (txog 9 degrees). Qhov tseem ceeb ntawm PU ua npuas ncauj ru tsev thiab EPS sandwich phab ntsa panels muaj cov cua tsis zoo, uas tuaj yeem hloov mus rau huab cua muaj zog hauv thaj chaw ntug dej hiav txwv ntawm Chile.



4.4 Ua kom tiav cov haujlwm thiab siv tau yooj yim

Hauv pem teb prefabricated ntawm lub thawv yog nruab nrog cov dej ua tiav thiab ob - txheej hauv pem teb ( cement fiber floor + PVC pem teb), uas yog waterproof thiab hnav -resistant; PU ua npuas ncauj lub ru tsev muaj kev ua haujlwm zoo thermal rwb thaiv tsev thiab prefabricated circuits, uas tuaj yeem ua tau raws li qhov xav tau ntawm cov khoom siv teeb pom kev zoo thiab hluav taws xob; EPS sandwich phab ntsa panels muaj cov thermal rwb thaiv tsev zoo thiab lub suab rwb thaiv tsev, tsim kom muaj kev ua haujlwm zoo thiab nyob ib puag ncig rau ntawm - cov neeg ua haujlwm hauv chaw. Qhov tsim nyog tsim nyog ntawm qhov project (lub tsev noj mov, chav dej, chav ua haujlwm, chav hloov pauv) kuj ua tau raws li ntau yam -kev xav tau ntawm qhov chaw tsim kho.



4.5 Economical thiab Environmentally Friendly

Lub tsev ntim khoom muaj tus nqi tsim kho tsawg, siv sijhawm luv luv, thiab tuaj yeem rov qab siv tau ntau zaus, uas txo cov nqi ntawm cov tsev nyob ib ntus. Nyob rau tib lub sijhawm, lub Hoobkas prefabrication txo qhov ntawm - qhov chaw tsim khoom pov tseg, thiab cov khoom siv rov ua dua tshiab, uas yog nyob rau hauv txoj kab nrog lub ntiaj teb ntsuab thiab qis - carbon txoj kev loj hlob. Tsis tas li ntawd, kev tiv thaiv kev tiv thaiv - kev kho corrosion ntawm cov khoom siv hlau txuas ntxiv lub neej kev pabcuam ntawm lub tsev, txo tus nqi ntawm kev kho tom qab.



Lub CBC Flatpack ntim cov chaw ua haujlwm ib ntus, nrog rau nws qhov zoo ntawm kev tsim kho sai, muaj zog txav, ua tiav kev ua haujlwm thiab kev ruaj ntseg zoo, muaj ntau qhov kev thov, feem ntau suav nrog cov nram qab no:

5.1 Kev tsim kho qhov chaw ib ntus

Nws yog siv los ua cov chaw ua haujlwm ib ntus, tsev so, tsev noj mov, chav dej, chav hloov pauv thiab lwm qhov chaw ntawm cov chaw tsim kho (xws li kev tsim vaj tsev, kev tsim kho, kev tsim choj, thiab lwm yam), uas tuaj yeem ua tau raws li qhov xav tau ntawm kev nyob thiab kev ua haujlwm ntawm - cov neeg ua haujlwm hauv tsev. Qhov project no yog ib daim ntawv thov nyob rau hauv qhov chaw tsim kho ntawm Chile PTC Company.



5.2 Kev Pabcuam Thaum Muaj Xwm Ceev thiab Kev Tiv Thaiv Kev Puas Tsuaj

Thaum muaj kev puas tsuaj ntuj tsim (xws li av qeeg, dej nyab, cua daj cua dub, thiab lwm yam), lub tsev ntim khoom tuaj yeem thauj mus rau thaj chaw muaj kev puas tsuaj sai sai thiab sib sau ua ke rau hauv cov tsev nyob ib ntus, cov chaw kho mob, cov chaw hais kom ua, thiab lwm yam, vim nws txoj kev sib dhos ceev ceev thiab muaj zog txav, uas muab kev txhawb nqa raws sij hawm rau kev cawm thaum muaj xwm txheej ceev thiab kev puas tsuaj.



5.3 Kev lag luam ib ntus thiab cov chaw pej xeem

Nws tuaj yeem siv los ua cov chaw lag luam ib ntus (cov khw muag khoom ib ntus, cov chaw ua yeeb yam, lub rooj muag khoom) thiab cov chaw pej xeem (cov tsev kho mob ib ntus, tsev kawm ntawv, cov chaw pabcuam hauv zej zog) hauv cov cheeb tsam uas muaj kev xav tau ib ntus, xws li kev kho dua tshiab hauv nroog, loj - kev ua ub no, thiab thaj chaw deb nrog kev tsim kho tsis zoo.



5.4 Kev Lag Luam thiab Mining Enterprises Ib ntus vaj tse

Hauv kev lag luam thiab kev lag luam mining (mines, factories, thiab lwm yam), nws tuaj yeem siv los ua cov chaw ua haujlwm ib ntus, hloov chav, warehouses, thiab cov chav tu rau ntawm - cov neeg ua haujlwm hauv tsev, hloov mus rau qhov chaw ua haujlwm hnyav ntawm cov chaw lag luam thiab mining nrog nws cov qauv ruaj khov thiab tiv thaiv - kev ua haujlwm corrosion.



5.5 Tej thaj chaw deb thiab chaw ua haujlwm

Rau kev ua haujlwm hauv cheeb tsam (kev tshawb nrhiav geological, kev tshawb nrhiav roj, kev tsim hluav taws xob, thiab lwm yam) thiab thaj chaw deb nrog kev thauj mus los tsis yooj yim thiab kev tsim kho tsis zoo, lub tsev ntim khoom yog yooj yim thauj thiab sib sau ua ke, thiab tuaj yeem muab qhov chaw ruaj khov thiab xis nyob ib ntus thiab chaw ua haujlwm rau cov neeg ua haujlwm.



CBC lub khw tseem ceeb suav nrog Chile, Philippines, Papua New Guinea, South Africa thiab lwm lub tebchaws. CBC Flatpack thawv lub tsev, nrog nws cov qauv tsim thiab kev ua haujlwm tau zoo, tuaj yeem hloov kho raws li cov xwm txheej sib txawv, kev xav tau ntawm kev ua lag luam thiab cov qauv tsim nyog ntawm txhua lub teb chaws los ntawm kev hloov kho yooj yim, qhia txog kev ua lag luam zoo.

6.1 Philippines Khw

Lub Philippines yog nyob rau hauv lub tropical monsoon climate cheeb tsam, nrog kub kub, hnyav los nag, nquag typhoons (pib cua ceev mus txog 50 m / s) thiab nquag av qeeg (seismic siv mus txog 7-8 degrees). Kev hloov kho ntawm lub tsev ntim khoom yog raws li hauv qab no: 1) Kev hloov kho cua txias: Txhim kho qhov kev sib txuas ntawm cov thawv ntim khoom, ua kom cov khoom sib txuas thiab cov kab teeb sib txuas, thiab txhim kho lub ru tsev qauv los txhim kho cov cua tiv thaiv; 2) Kev hloov kho seismic: Ntxiv los tiv thaiv - seismic cais cov ntaub qhwv rau hauv qab ntawm cov thawv ntim kom txo tau qhov cuam tshuam ntawm av qeeg, thiab siv cov kab txuas txuas ntxiv los txhim kho cov ductility ntawm cov qauv; 3) Kev tiv thaiv - corrosion thiab noo noo- pov thawj kev hloov kho: Txais qib siab dua- qib tiv thaiv- xeb xim rau cov khoom siv hlau kom hloov mus rau cov av noo thiab qab ntsev marine kev nyab xeeb, thiab ntxiv cov dej pov thawj hauv cov phab ntsa panels thiab cov plag tsev kom tiv thaiv cov khoom ntub dej; 4) Kev hloov kho dej: Txhim kho lub ru tsev txoj kab nqes thiab ntxiv cov kav dej ntxiv kom ntseeg tau tias cov dej ntws zoo hauv cov nag hnyav. Lub tsev ntim khoom tuaj yeem siv los ua cov chaw ib ntus rau cov chaw tsim kho, tsev kho mob thaum muaj xwm txheej ceev thiab lwm qhov chaw hauv Philippines, ua tau raws li kev xav tau ntawm kev lag luam hauv zos.



6.2 Papua New Guinea Market

Papua New Guinea nyob hauv thaj chaw huab cua sov huab cua, muaj qhov kub thiab txias, muaj av noo, dej nag hnyav, av qeeg ntau zaus thiab nyuaj geological tej yam kev mob (ntau lub roob siab, tsis zoo lub hauv paus bearing peev xwm). Kev ntsuas kev hloov kho tau raws li hauv qab no: 1) Kev hloov kho hauv paus: Rau cov cheeb tsam uas tsis tshua muaj peev xwm ntawm lub hauv paus, txais yuav cov hauv paus hauv paus los yog pawg hauv paus txhawm rau txhim kho lub peev xwm; 2) Qhov cua thiab noo noo- pov thawj kev hloov kho: Ua kom lub qhov rais thiab nruab qhov cua kiv cua los txhim kho qhov cua hauv tsev, thiab siv cov dej noo- pov thawj EPS cov ntaub ntawv tseem ceeb rau cov phab ntsa panels los tiv thaiv cov dej noo; 3) Kev kho tsheb thauj mus los thiab kev tsim kho: faib cov khoom loj rau hauv cov ntu me me rau kev thauj mus los kom hloov mus rau cov tsheb tsis muaj kev tsim kho hauv thaj chaw roob, thiab txais yuav yooj yim thiab yooj yim-rau- tsim cov kev sib txuas kom haum rau qib kev tsim kho hauv zos; 4) Kev hloov kho seismic thiab cua tsis kam: Xa mus rau cov seismic tsim cov cai hauv zos, txhim kho cov txheej txheem kom txhim kho seismic kev ua tau zoo, thiab ntxiv dag zog rau lub ru tsev thiab phab ntsa panels kom tiv taus cua daj cua dub thiab dej nag hnyav. Lub tsev ntim khoom zoo heev rau cov chaw ua haujlwm ib ntus, tsev so thiab lwm qhov chaw hauv cov chaw tsim kho thiab cov chaw mining ntawm Papua New Guinea.



6.3 South Africa Kev Lag Luam

South Africa muaj kev nyab xeeb subtropical, nrog rau qhov kub thiab txias sib txawv ntawm nruab hnub thiab hmo ntuj, muaj zog hnub ci hluav taws xob, qee zaus cua daj cua dub thiab av qeeg (seismic siv txog 6-7 degrees), thiab cov av noo nyob rau qee qhov chaw. Cov kev hloov kho kom haum yog raws li hauv qab no: 1) Kev hloov kho cua sov: Ntxiv ib txheej ntawm thermal rwb thaiv tsev paj rwb ntawm lub ru tsev thiab phab ntsa panels los txhim kho thermal rwb thaiv tsev kev ua tau zoo, thiab siv cov xim hlau phaj nrog cov tshuaj tiv thaiv - ultraviolet txheej kom qeeb kev laus los ntawm lub hnub ci hluav taws xob muaj zog; 2) Los tiv thaiv- kho corrosion: Txais kub-dip galvanizing + anti-corrosion xim kho rau steel Cheebtsam kom haum rau cov av noo thiab huab cua hauv zos, thiab txuas ntxiv lub neej kev pab cuam; 3) Kev hloov kho qhov kub thiab txias: Teem nthuav cov pob qij txha hauv cov qauv kom tso cov kev ntxhov siab los ntawm thermal expansion thiab contraction, tiv thaiv cov qauv deformation; 4) Kev hloov kho cua thiab seismic: Tsim nyog nce ntu loj ntawm kab thiab txuas kab teeb kom txhim kho cua tiv thaiv thiab kev ua haujlwm seismic. Lub tsev ntim khoom tuaj yeem siv los ua cov chaw ua haujlwm ib ntus, cov chaw lag luam thiab cov tsev kho mob thaum muaj xwm txheej ceev hauv South Africa, ua tau raws li kev lag luam hauv zos qhov kev thov rau cov tsev nyob ib ntus nrog kev txuag hluav taws xob, kev tiv thaiv ib puag ncig thiab kev ruaj ntseg.



6.4 Summary of Market Adaptability

Lub CBC Flatpack thawv lub tsev muaj cov qauv tsim thiab qauv tsim, thiab nws cov khoom tseem ceeb (ru tsev, pem teb, phab ntsa panels) tuaj yeem hloov kho raws li qhov kev nyab xeeb hauv zos (kub, dej nag, cua ceev), geological tej yam kev mob (lub hauv paus muaj peev xwm, seismic siv), kev lag luam xav tau (kev xav tau, kev tsim kho qib) thiab cov lej cuam tshuam ntawm txhua lub teb chaws. Nws muaj qhov hloov tau zoo hauv CBC lub khw tseem ceeb (Chile, Philippines, Papua New Guinea, South Africa, thiab lwm yam), tuaj yeem ua tau raws li cov kev xav tau sib txawv ntawm cov lag luam sib txawv rau cov tsev nyob ib ntus, thiab muaj kev lag luam dav dav.



Ob- zaj dab neeg ib ntus chaw ua haujlwm tsim los rau Chile PTC Lub Tuam Txhab siv CBC tus qauv Flatpack thawv cov tsev ua tau raws li qhov xav tau ntawm qhov chaw tsim kho, nrog rau kev tsim tsim nyog, cov chaw ua kom tiav, thiab cov ncauj lus kom ntxaws thiab meej cov ntaub ntawv siv rau kev tsim kho. Lub CBC Flatpack thawv lub tsev muaj qhov zoo ntawm kev tsim kho sai, muaj zog txav, ruaj khov zoo, ua tiav kev ua haujlwm, kev lag luam thiab kev tiv thaiv ib puag ncig, thiab muaj ntau yam kev siv, uas tuaj yeem siv dav hauv cov chaw tsim kho, kev cawm thaum muaj xwm txheej ceev, kev lag luam thiab kev lag luam mining thiab lwm yam. Nyob rau tib lub sijhawm, los ntawm kev hloov kho yooj yim, lub tsev ntim khoom tuaj yeem ua tau raws li qhov sib txawv ntawm CBC lub lag luam tseem ceeb (lub Philippines, Papua New Guinea, South Africa, thiab lwm yam), uas qhia tau tias muaj kev sib tw ua lag luam thiab kev nthuav dav dav.
