Modular Container House Camp Facility Rau AMMAN Mining Site - Indonesia
Client: PT AMMAN Mineral Internasional (Indonesia)
Qhov chaw: thaj chaw deb Island mining site, Indonesia
Scope: Kev tsim kho ntawm 6 zoo tib yam ob-storey modular camp cov tsev rau cov neeg ua haujlwm pab

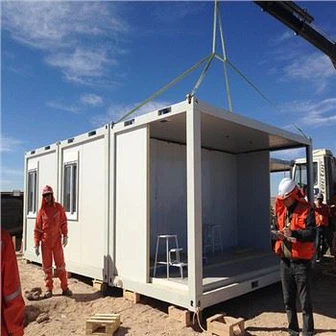

Modular Units: CBC Standard Flatpack Container House
Qhov Loj: W 2,438 mm × L 6,000 mm × H 2,700 mm
Tag nrho cov chav nyob: 6 lub tsev × 80 units=480 thawv tsev
Khoom Taw qhia
Qhov project Overview
1️⃣ Client: PT AMMAN Mineral Internasional (Indonesia)
2️⃣ Qhov chaw: thaj chaw deb Island mining site, Indonesia
3️⃣ Scope: Kev tsim kho ntawm 6 zoo tib yam ob -storey modular camp lub tsev rau cov neeg ua haujlwm pab
4️⃣ Modular Units: CBC Standard Flatpack Container House
5) Qhov ntev: W 2,438 mm × L 6,000 mm × H 2,700 mm
6️⃣ Total units: 6 lub tsev × 80 units=480 thawv tsev
Layout per Building:
▶️ Ob pem teb, txhua chav muaj 40 chav (40 thawv)
▶️ Cov chav nyob hauv ob sab nraub qaum - mus rau - kab rov qab (20 + 20)
▶️ Sab nrauv txoj hauv kev ntawm ob sab ntev (tsis muaj txoj hauv kev sab hauv)
▶️ Nkag mus rau sab nraud steel ntaiv ntaiv ntawm txhua qhov kawg
Architectural tiav:
▶️ Lub tsev sab nrauv (cov phab ntsa ntim): Xiav (RAL 5010)
▶️Txoj kev hauv tsev, ntaiv, tes tuav: Daj (RAL 1021) nrog 300 µm tiv thaiv xim
▶️Roofing: Lub teeb galvanized steel ru tsev qauv tshaj tag nrho lub tsev (mono- suab lossis gable, -5℃txoj kab nqes)
Thauj & Logistics:
🌏 4 flatpack ntim bundled li 1 thauj unit
🌏 2 pob (8 ntim) haum rau hauv 1 × 40-ft High Cube (HQ) shipping thawv
🌏 Tag nrho cov ntim khoom xa tuaj: 480 ÷ 8=60 × 40-ft HQ ntim, ntxiv rau 15 x 40ft HQ rau txhua txoj hauv kev, ntaiv, tes tuav, lub ru tsev thiab huv.
Qhov zoo ntawm qhov project
✅ Kev xa tawm sai
CBC's flatpack tsim txo cov ntim thauj los ntawm 75% vs
Ntawm - lub sijhawm sib dhos ntawm qhov chaw: < 30 hnub rau ib lub tsev nrog cov neeg ua haujlwm me
Parallel workstreams: foundation prep thaum modules tuaj txog
✅ Pov thawj Durability nyob rau hauv Tropical Marine Environments
CBC units feature Z275 galvanized steel thav duab, PU npuas rwb thaiv tsev, thiab marine- qib seals
300 µm xim system ntawm cov khoom ncig tshaj ISO 12944 C5-M (chav kawm marine corrosion)
Lub ru tsev thiab module kev koom ua ke tiv thaiv dej ingress-tseem ceeb rau siab- dej nag Indonesian Islands tuaj
✅ Logistics Efficiency
8 units rau 40-ft HQ thawv ua kom lub nkoj loj tshaj plaws
Simplified kev lis kev cai clearance (tus qauv HS code rau modular vaj tsev)
Tsis xav tau cov cranes hnyav - modules sib dhos nrog telehandlers
✅ Kev ua raws cai & kev nplij siab
Raws li Indonesian SNI cov qauv rau cov neeg ua haujlwm nyob ib ntus
Txhua chav muaj xws li: insulated phab ntsa / ru tsev, zawv zawg qhov rais, qhov rooj, hluav taws xob qhov hluav taws xob, qab nthab kiv cua taw tes, kav dej thiab hluav taws xob system;
Ntuj ntoo khaub lig- qhov cua los ntawm dual- nam layout
✅ Scalability & Future Flexibility
Cov tsev tuaj yeem raug tshem tawm thiab hloov chaw
Ntxiv modules yooj yim integrated rau camp expansion
Architectural & Structure Configuration
1 Lub Tsev Layout (Ib chav tsev)
| Parameter | Tus nqi |
|---|---|
| Lub tsev hneev taw | 24.38 m (W) × 60.0 m (L) |
| Pem teb suav | 2 |
| Chav rau pem teb | 40 (20 rau ib sab) |
| Txoj kev dav | 1.5 m (sab nraud, cantilevered lossis txhawb nqa) |
| Pem teb - mus rau - pem teb qhov siab | 2.9 m (nrog rau qhov tob ntawm cov qauv) |
| Tag nrho lub tsev qhov siab (rau eaves) | -6.2 m |
| Ru tsev overhang | 0.6 m ntawm txhua sab |
Lus Cim: Cov thawv ntim tau muab tso ncaj qha rau ntawm lub hauv paus pob zeb ua ke los yog ntsia hlau pawg hauv paus.
2 Lub Tsev Txheej Txheem
Qauv: Txias-ua C-section purlins ntawm lub teeb steel trusses lossis portal thav ntawv
Span: 24.38 m (ntshiab ncua lossis nrog kev txhawb nqa hauv nruab nrab yog tias xav tau)
Cladding0.5 hli BMT corrugated galvanized steel ntawv (xiav, txuam zoo nkauj)
Dej ntws: Box gutters + downpipes ntawm qhov kawg
3 Kev ncig
Cov ntaiv: Ob sab nrauv steel stair towers ib lub tsev (ib qho ntawm txhua qhov kawg)
Dav: 1.2 m
Treads: steel grating lossis checker phaj
Handrails: Ø48 mm galvanized yeeb nkab, pleev xim daj
Kev taug kev: Cantilevered lossis kem -txhawb steel decks nrog plam-resistant nto
3. Khoom siv -Off (ib lub tsev)
| Yam khoom | Kev piav qhia | Ntau | Sau ntawv |
|---|---|---|---|
| Thawv Module | CBC Flatpack Lub Tsev (2.438 × 6.0 × 2.7 m) | 80 units | Ua ntej- haum nrog lub qhov rooj, qhov rais, rwb thaiv tsev, hluav taws xob ntxhib-in |
| Steel Qauv (ru tsev) | C200-C250 purlins & trusses (Qib 300) | - 8,500 kg | HDG los yog pleev xim rau |
| Txoj Kev Taug Kev | SHS / RHS kab teeb, kev txhawb nqa grating | - 3,200 kg | Painted daj (300 µm system) |
| Stair Towers | Stringers, landings, handrails | 2set ib | Cov xim daj, tsis yog -slip treads |
| Ru tsev Cladding | 0.5mm hli. steel ntawv | 1,600 m² | Xim xiav -coated |
| Fasteners & Accessories | Bolts, clips, thauj tog rau nkoj, sealants | - | Corrosion-resistant |
| Xim System | 300 µm epoxy / polyurethane txheej | -1,200 m² (qhov chaw daj) | Rau kev taug kev, stairs, rails |
Tag nrho rau 6 Lub Tsev
Ntim: 480 units
Lub tsev hlau: 51,000 Kg
Taug kev / stair steel: 19.200 Kg
Ru tsev cladding: 9,600 m²
Kev xa khoom: 60 × 40-ft HQ thawv
